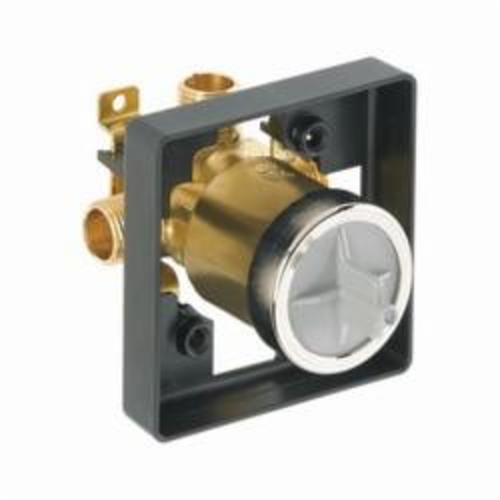

DELTA® High Flow Shower Valve Body, Universal, 1/2 in Inlet Connection, 1/2 in Outlet, Wall Mount, Brass, For Use With: MultiChoice® Shower Systems, 4 in H x 4 in W, Domestic
Dimensions |
: |
4 in H x 4 in W |
Domestic/Import |
: |
Domestic |
Inlet Connection |
: |
1/2 in |
Material |
: |
Brass |
Mounting Type |
: |
Wall |
Outlet Connection |
: |
1/2 in |
Suitable For Use With |
: |
MultiChoice® Shower Systems |
Type |
: |
Universal |
Warranty |
: |
Limited Lifetime |
- MultiChoice® universal valve body only
- High flow for use with shower only models
- HF rough valves feature blocked tub port no additional plug needed when used in shower only application
- Back-to-back capability
- Can be tested with air (200 psi) or water (300 psi) without valve using supplied test cap
- Square plaster guard allows for right angle cuts
- Thin wall mounting
- 1/2 in outlets and connections
- Note: no tub outlet in HF model
- Note: should use proper fitting with each type (copper tubing, iron pipe and PEX fitting)
- Note: should use proper tooling with crimping PEX fitting and cold expansion PEX models
- Note: IP indicates female 1/2 in threaded connections
- Note: UN indicates universal type fitting and is 1/2 in NPT male thread with 1/2 in C.W.T. female sweat
- Universal fittings
-
Instruction/Installation Sheet
https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Delta_Faucet_Co_R10000-IP_Installation_Instruction.pdf
-
Parts List
https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Delta_Faucet_Co_R10000-IP_Part_List.pdf
-
Data/Spec Sheet
https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Delta_Faucet_Co_R10000-IP_Data_Sheet.pdf
