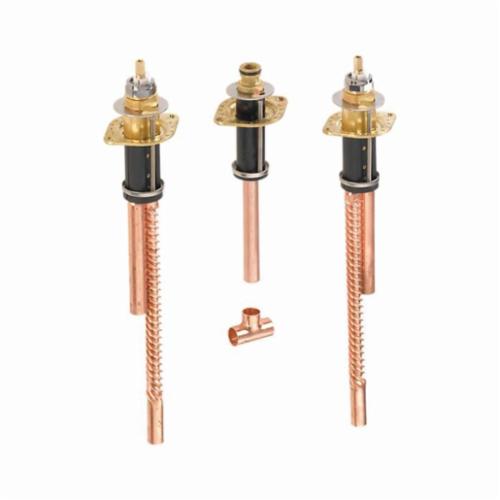

DELTA® Roman Tub Rough, 18 gpm, 8 to 16 in Center Distance, 3 Faucet Holes, 2-1/4 in Maximum Deck Thickness, Washerless Stem Valve/Cartridge Type, Brass
| Center Distance | : | 8 to 16 in |
| Flow Rate | : | 18 gpm |
| Material | : | Brass |
| Maximum Deck Thickness | : | 2-1/4 in |
| Number of Faucet Holes | : | 3 |
| Valve/Cartridge Type | : | Washerless Stem |
| Warranty | : | Limited Lifetime |
- Roman tub rough-in installation kit
- Self-locating basis
- Tighten/adjust from above the deck
- 5/8 in O.D. copper supply inlet tubes
- 5/8 in O.D. corrugated copper supply outlet tubes
- Widespread 16 in (406 mm) maximum centers without using additional tubing
- Flexible deck or ledge mount installation
- Solid fabricated brass end valves and spout body
- Control mechanism shall be of the rotating cylinder type with ceramic plate and 180 deg rotation, with replaceable ceramic seats operating in stainless steel lined sockets
- Hot and cold stems are interchangeable
- Temperature and volume controlled with handles
- All operating parts shall be replaceable from the top
- 18 gpm at 60 psi
