Apollo™ 70103HC

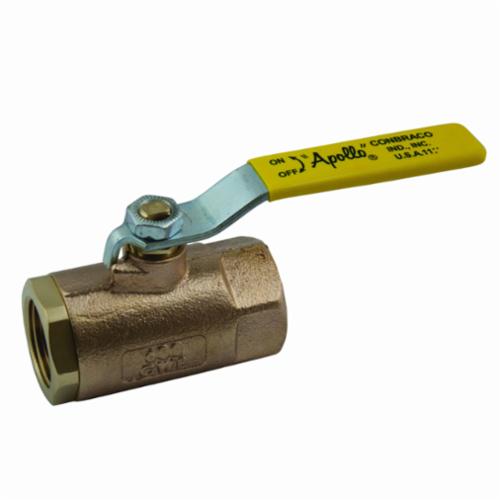

1/2" 2-Piece Ball Valve, FNPT, Bronze, Standard Port, Apollo™ 70-103-HC

  • Manufacturers: Apollo Conbraco
  • Brand Name: Apollo™
  • Part#: 147341
  • MPN: 70103HC
  • UPC: 670750521553
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading branchavailability

Apollo™ 2-Piece Ball Valve, Series: 70-100, 1/2 in Nominal, FNPT, 600 psig CWP Pressure Rating, 500 deg F Temperature, Standard Port, Media: Water, Lever Handle Actuator, Chrome Plated Brass Ball, 2.17 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, Bronze Body, Brass Stem Trim, Softgoods Material: MPTFE Stem Packing/RPTFE Seat, Domestic

Actuator Type      :      Lever Handle
Ball Material      :      Chrome Plated Brass
Body Material      :      Bronze
Domestic/Import      :      Domestic
End Style      :      FNPT
Inlet to Outlet Length      :      2.17 in
Media      :      Water
Nominal Size      :      1/2 in
Port Type      :      Standard
Pressure Rating      :      600 psig CWP
Series      :      70-100
Softgoods Material      :      MPTFE Stem Packing/RPTFE Seat
Temperature Rating      :      500 deg F
Top to Inlet Center      :      1-3/4 in
Trim Material      :      Brass Stem
Warranty      :      5 Years
  • pdfCatalog-1 https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Apollo_77V-104-01_Catalog.pdf
  • pdfData/Spec Sheet-1 https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Apollo_70-100-01_Data_Sheet_1.pdf
  • pdfData/Spec Sheet-1 https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Apollo_Conbraco_7010001_Data_Sheet.pdf
  • pdfCatalog-1 https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Apollo_77V-104-01_Catalog.pdf
  • pdfInstruction/Installation Sheet https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Apollo_70-100-01_Installation_Instruction.pdf
  • pdfData/Spec Sheet https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Apollo_70-100-01_Data_Sheet.pdf
  • linkVideo Link https://youtu.be/qy5qmtgTtPQ
