ProRadiant™ 11505
  1. pin-int

ProRadiant™ 11505

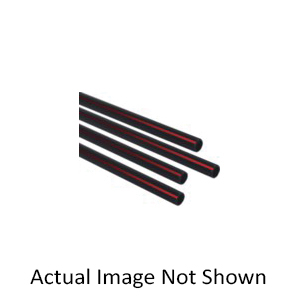

1" x 20' ProRadiant™ Barrier Tube, 0.862" ID x 1-1/8" OD, 1/8" Thick Wall, Domestic

  • Manufacturers: Viega
  • Brand Name: ProRadiant™
  • Part#: 88496
  • MPN: 11505
  • UPC: 691514115054
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading branchavailability

ProRadiant™ Barrier Tube, 1 in Nominal Size, 0.862 in Inside Dia, 1-1/8 in Outside Dia, 20 ft Length, 1/8 in Wall Thickness, 200 psi Working, 0 to 250 deg F, Black With Stripe, Domestic

Color      :      Black With Stripe
Domestic/Import      :      Domestic
Inside Diameter      :      0.862 in
Length      :      20 ft
Nominal Size      :      1 in
Outside Diameter      :      1-1/8 in
Temperature Rating      :      0 to 250 deg F
Wall Thickness      :      1/8 in
Warranty      :      Limited
Working Pressure      :      200 psi
