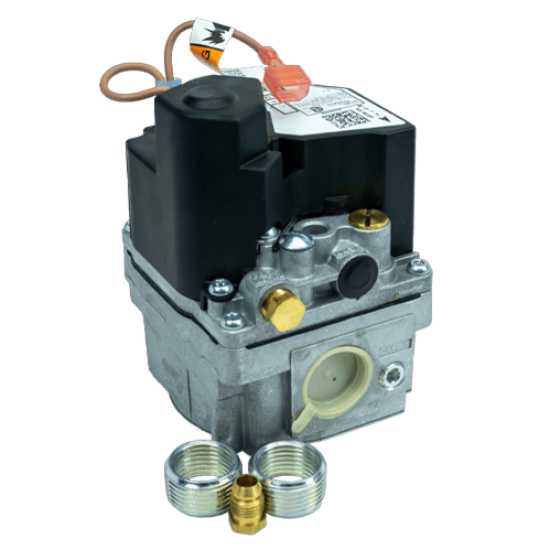

Universal Single Stage Fast Open HSI/DSI/Intermittent/Proven Pilot Gas Valve, 24V, 3/4 X 3/4, Reducer Bushings (Two 3/4 to 1/2), 1/4 Male Spade Quick Connect Terminals, Nat. Gas (Includes LP Conversion Kit), Replaces 36C68-423; Can Replace 36H32-304
The 36H Combination Gas Control Valve is a Versatile Multifunction Control Designed to Meet the Requirements for Use with Intermittent Ignition Systems (Direct Ignition, Proven Pilot). The 36H Valve is Our Highest Capacity Combination Gas Valve
Features
- Pilot port plugged for Hot Surface and Direct Spark Ignition systems, remove plug for Intermittent/Proven Pilot systems
- Fast open, single stage
- Electric on-off switch and convenient quick connect coil terminals
- Tamper resistant screws and controlled gasket compression to withstand high inlet pressures
- Mounting position upright, or 0° to 90°From upright in any direction
- CSA approved
