| Amperage Rating | : | 11.3 A Full Load |
| Application Type | : | Condenser Fan Motors, Fan & Blower Motors |
| Bearing Type | : | Sleeve |
| Dimensions | : | 5.59 in Dia x 10.39 in L |
| Enclosure Type | : | Open Air Over |
| Frame | : | NEMA 48 |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 3/4 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | Belly Band/Shaft Up/Down |
| Number of Speeds | : | 3 |
| Phase | : | 1 ph |
| Rotation | : | Reversible |
| Service Factor | : | 1 |
| Shaft Size | : | 1/2 in Dia x 4-1/2 in L |
| Speed | : | 1075 rpm |
| Temperature Rating | : | 140 deg F |
| Voltage Rating | : | 115 VAC |

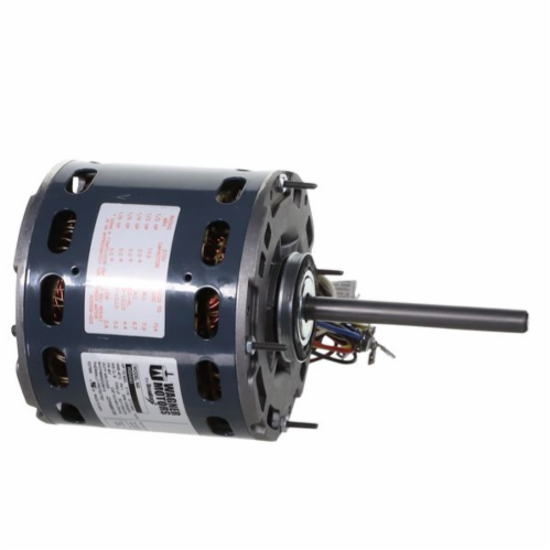

The Multi-Horsepower motors are specially designed to cover a range of applications. The direct drive furnace blower motors range from 1/2 to 1/6, all in 115 volts at 1075rpm. These motors feature reversing plugs, extended thru bolts 36 inch leads and are designed for 370 volt capacitors. Installs with all 48 mounting brackets.
Motors feature reversing plugs, extended thru bolts, 36 inch leads and low power consumption.
Ball bearing design allows for greater heat endurance, improved performance, increased reliability, and enhanced motor life.
Extended mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded mounting nut quickly and efficiently.
Run capacitor connections are insulated for increased safety and flag disconnects are provided.
