| Color | : | Ivory |
| Dimensions | : | 1.998 in L x 0.675 in D |
| Domestic/Import | : | Domestic |
| Load Capacity | : | 25 lb |
| Material | : | Polypropylene |
| Series | : | 557 |
| Temperature Rating | : | 140 deg F |
| Thickness | : | 0.12 in |
| Tube Size | : | 3/4 in |

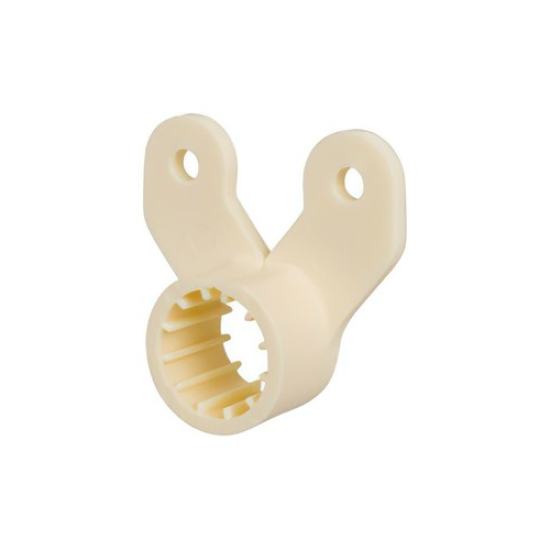

Sioux Chief EZ Glide suspension tube clamps can be used with 1-1/4" copper, PEX, CPVC or PB pipe for installation in residential or commercial applications. The split design allows to install the clamp after piping has been installed. Inner ribbed design gives piping the ability to expand and contract, effectively eliminating noise from friction and wear and tear.
Features:
- Suspends pipe installed perpendicular to floor joists
- Protects pipe where it penetrates wooden and metal studs
- Ribbed inner surface eliminates pipe noise from friction and thermal expansion
- Made in the USA
Technical Specifications:
- For pipe sizes: 1-1/4" CTS (1-3/8" OD) PEX, Copper or CPVC pipe
- Safe Working Load: 25 lbs
- Material: High-impact polypropylene
- Working Temperature: 0-140°F
