| 1 - Tonnage |
: |
3.0 Ton |
| 2 - Air Conditioner |
: |
NS22 |
| 2A - Refrigerant |
: |
R454 |
| 3 - Coil Configuration |
: |
Upflow |
| 4 - Furnace |
: |
NF97-VS |
| 5 - BTU |
: |
110k |

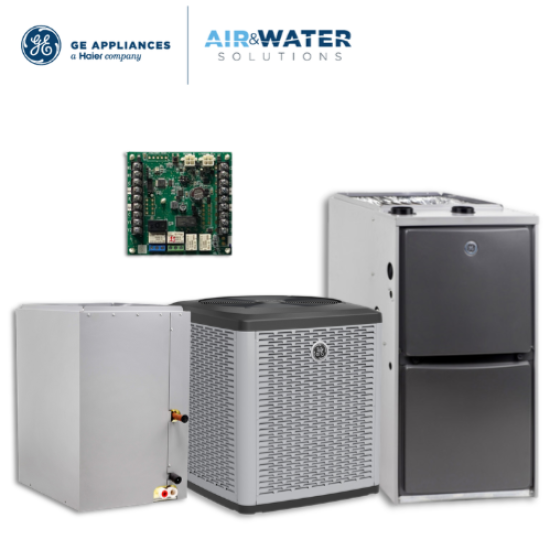

System Includes - AHRI 217497042:
1 - GE NS22A36MA5 - 3.0 Ton 22 SEER2 Inverter Air Conditioner, R454B
1 - GE NCUC48CT5S - 3.0 - 4.0 Ton Cased Coil, 27.5"H X 21"W X 21"D, R454B
1 - GE NF97U110V5C - 5.0 Ton 110K 97% 2-Stage Variable Speed Upflow/Horizontal Furnace
1 - 27A05 AAE RDSC Field Kit 24 Volt Control Board Kit, Must be Externally Mounted on Air Handler or Coil
-
AHRI Certificate
https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/AHRI_217497042.pdf
-
Coil Installation
https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/NCUC Install.pdf
-
Furnace Installation Manual
https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/NF97.UD.V.Installation.pdf
-
A/C Installation Manual
https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/NS22 Install Manual.pdf
-
Coil Spec
https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/NCUC Spec.pdf
-
Furnace Specification Sheet
https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/NF97.UD.V.Specification.pdf
-
A/C Specification Sheet
https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/NS22 Spec Guide.pdf
