| Amperage Rating | : | 3.9 A |
| Bearing Type | : | Ball |
| Dimensions | : | 5-5/8 in Dia |
| Frame | : | 48Y |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1/2, 1/3, 1/4, 1/5 hp |
| Insulation Class | : | Class F |
| Mounting Type | : | Stud/Belly Band |
| Number of Speeds | : | 4 |
| Phase | : | 1 |
| Rotation | : | Reversible |
| Service Factor | : | 1 |
| Shaft Size | : | 1/2 in Dia x 5 in L |
| Speed | : | 1075 rpm |
| Temperature Rating | : | 70 deg C Ambient |
| Voltage Rating | : | 208 to 230 V |

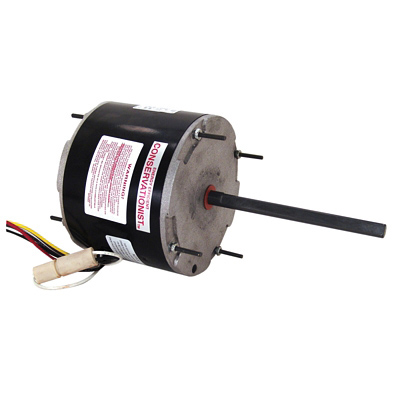

Century® By Packard MasterFit® Pro Condenser Fan Motor, 208 to 230 V, 3.9 A, 60 Hz, 1/2, 1/3, 1/4, 1/5 hp, 1, 1075 rpm, 4 Speed, 48Y Frame, 1/2 in Dia x 5 in L Shaft, Reversible, Service Factor: 1, Ball Bearing, Stud/Belly Band Mount, 70 deg C Ambient, Insulation Class: Class F, 5-5/8 in Dia
- Designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with "belly band" or extended clamp screw mounting
- 36 in lead length
- Totally enclosed
- 5.24 in length less shaft
- All purpose, multi-rating
- Permanent split capacitor
- Extended thru bolts
- Rheem mounting holes in shells
- 4 end frame mounting holes for rheem and trane
- Energy efficient
- Single shaft
- 12.5 MFD/370 V capacitor at 208 V
- POC10 capacitor at 230 V
- POC12.5 capacitor
