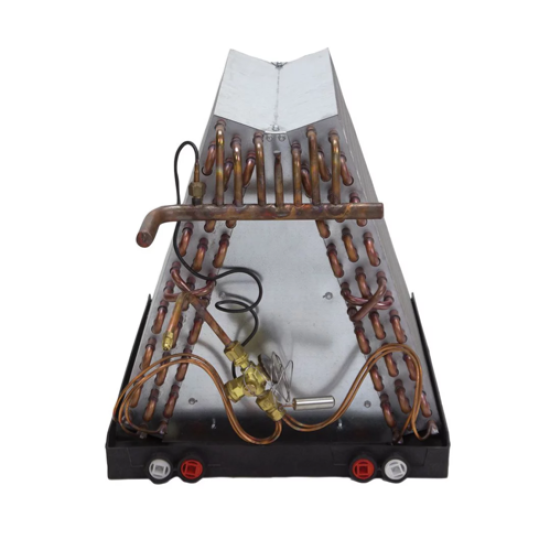

Aspen CA60A34-195L-000
*Service Only Coil* Aspen R410A 3.5 - 5.0 Ton Upflow/downflow Uncased Coil, 19.5"W
Aspen CA60A34-195L-000 3.5 - 5.0 Ton R410A Uncased Coil, 19-1/2W X 25-1/2T X 19-3/8D, *For Service ONLY - NOT to be Installed with New Outdoor Unit*
| Coil Configuration | : | Upflow/Downflow |
| Metering Device | : | TXV |
| Refrigerant Type | : | R410A |
| Tonnage | : | 3.5 - 5.0 Ton |
| Width | : | 19.5 |
Features and Benefits
APPLICATION VERSATILITY
• Standard Upflow without field modification. Downflow applications require field kit, sold separately.
• AHRI certifiable with all brands of A/C and heat pump systems.
• ETL listed for R22 and 410A. ETL listed for R454B and R32 with Refrigerant Detection System (RDS).
• A2L refrigerants require a Refrigerant Detection System (RDS) for compliance.
FEATURES
• Rifled copper tubing, enhanced aluminum fins.
• Heavy duty plastic drain pans on most models.
REFRIGERANT & PLUMBING CONNECTIONS:
• Immersion tested at 500 psi, followed by nitrogen pressurization and factory sealing to ensure optimal system integrity and long-term reliability.
• Left and right-hand standard refrigerant/plumbing connections:
— Liquid line: 3/8” ODS
— Suction line:
• 3/4” ODS on 1-1/2-ton to 3-ton
• 7/8” ODS on 3-1/2-ton to 5-ton
• Condensate Drains: 3/4″ NPT
