Ducane™ 7AH1AC30PX-71
  1. pin-int

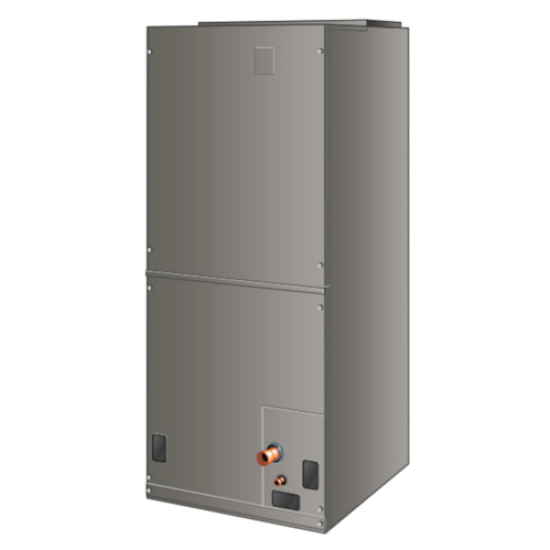

Ducane™ 7AH1AC30PX-71

Ducane™ Air Handler, Upflow/Horizontal, PSC Motor, 2.5 Ton, 230V, R454B

  • Manufacturers: Allied Air Enterprises
  • Brand Name: Ducane™
  • Part#: 574973
  • MPN: 7AH1AC30PX-71
  • UOM: ea
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

Ducane™ Air Handler, Upflow/Horizontal, PSC Motor, 2.5 Ton, 230V, R454B

Dimensions      :      47 in H x 18.5 in W x 22 in D
Filter Size      :      15 x 20 in
Liquid Line Size      :      3/8 in
Motor Type      :      PSC
Power Source      :      230 VAC 60 Hz 1 ph
Refrigerant Type      :      R454B
Series      :      7AH1AC
Suction Line Size      :      3/4 in
Supply Air Opening      :      16.5 in W x 14.5 in D
  1. Omniguard® Coil
  2. Mechanical or Brazed Line Set Connections
  3. Check and Expansion Valve
  4. PSC Blower Motor
  5. Heavy Gauge Steel Cabinet
  6. Anti-Microbial Dual Position Drain Pans
  7. Built in Filter Rack
  8. Transformer and Blower Relay
  9. Electric Heat (optional)
  • pdfInstallation Manual https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/RESI_AIRHANDLERS_7AH1AC-71_INSTALLATIONMANUALpdf.pdf
  • pdfSpecification Sheet https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/RESI_AIRHANDLERS_7AH1AC_R-454B_SPECSHEETpdf.pdf
