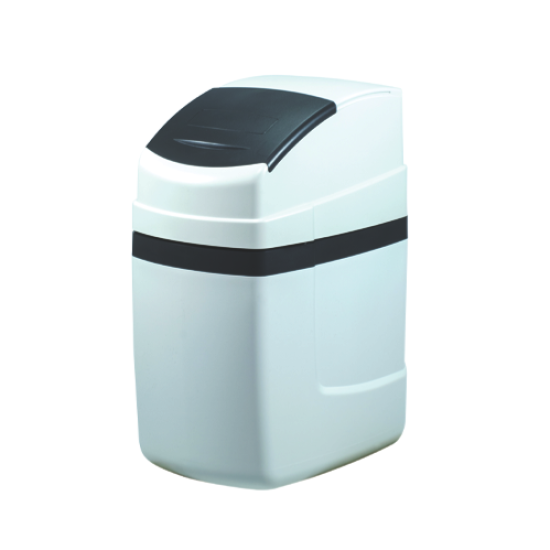

The Diamond Line LX features a Lancaster designed state-of-the-art control valve and plate technology distribution system to ensure peak efficiency.
The control valve is outfitted with a solid-state microprocessor control and Dot Matrix color-specific display to simplify system operation and set-up. The microprocessor controls the programmed sequence of cycles and cycle times while the color-specific display alerts you to the current state of process or needs of your LX unit. Blue indicates the unit is In Service; Green indicates the unit is regenerating; Flashing Yellow indicates the unit needs Maintenance; and Flashing Red indicates an Error.
The innovative control valve is easy to program and provides valuable information, including usage history, diagnostic records, and current gallon-per-minute flow and usage to the installer and homeowner. Additionally, the control valve monitors days since the last regeneration, peak flow rates, and reserve capacity based on water usage over the previous 21 days.
- Service Flow Rate 17 GPM
- Back Wash Rate 1.7 GPM
- Softener Tank Size 10" Diameter x 35" Height
- Brine Tank Size 13.5" Length x 22.5" Width x 44" Height
- Color/Finish White
- Input Supply Rating 120 Volt AC at 60 Hertz
- Temperature Rating 35 to 100 Deg F
- Pressure Rating 20 to 100 PSI
- Inclusions/Features Electronic Control Valve
- Mineral Volume 1 Cu Ft
- Pressure Drop 15 PSI
