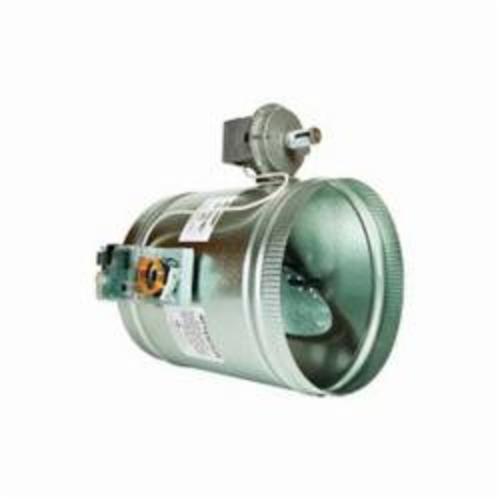

Ultra-Zone™ 14 EBD
Ultra-Zone™ EBD Static Pressure Control Electronic By-Pass Damper, 14 in, 24 VAC, 50/60 Hz, Domestic
The EBD (electronic bypass) style are self-contained units that give you the static control mounted to the damper. It is an "all-in-one" design that makes the installation process much easier than most electronic bypass dampers. The static pressure can be adjusted in the field between 0.5 to 4 in of pressure. This is done by the turn of a set-screw.
Ultra-Zone™ Electronic By-Pass Damper, Static Pressure Control, Series: EBD, 24 VAC, 50/60 Hz, 14 in Damper, Terminal Block Connection, Round, 24 ga, Crimped Edge Mount, Steel, Galvanized, Domestic
| Connection Type | : | Terminal Block |
| Damper Size | : | 14 in |
| Domestic/Import | : | Domestic |
| Finish | : | Galvanized |
| Frequency Rating | : | 50/60 Hz |
| Gauge | : | 24 ga |
| Includes | : | (2) 1/4 in OD Brass Barbed Air Pressure Connectors, (2) Pitot Tubes, (2) Pressure Tubing |
| Material | : | Steel |
| Mounting Type | : | Crimped Edge |
| Series | : | EBD |
| Shape | : | Round |
| Type | : | Static Pressure Control |
| Voltage Rating | : | 24 VAC |
- Round bypass dampers are fabricated from 24 ga galvanized steel
- The rolled shells are furnished with one straight (female) end and one crimped (male) end with stiffening beads for rigidity
- Round EBD bypass dampers are equipped with low leakage blade seals
- Reevecote diaphragm sensing element
- 24 VAC at 3 VA 1.5 w required to pressure switch
- Pressure switch is factory wired to damper motor
- SPDT HD contacts rated for 10 a at 120 VAC
