Aspen CC36A3G-175R-000

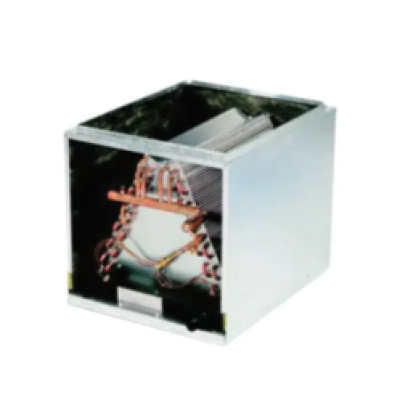

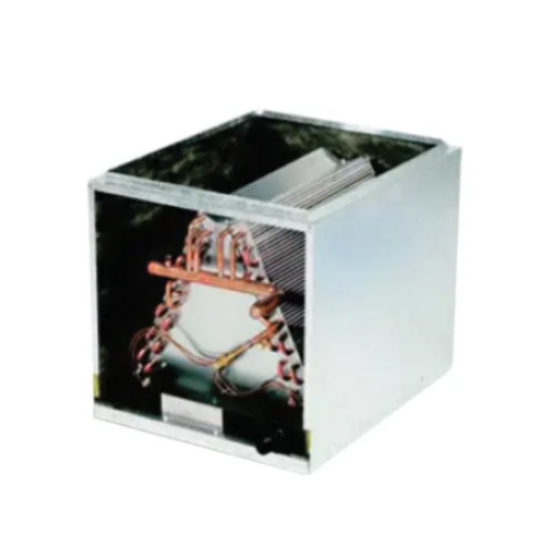

SERVICE ONLY - 2.5 - 3.0 Ton Upflow/Downflow Cased Coil, R-410A Refrigerant, 17-1/2" Width, Galv Cabinet, Aspen
Aspen Everything's Right Here™ Evaporator Coil, 3-Row, Series: CC Series, 2.5 - 3.0 ton Nominal Capacity, Upflow/Downflow, R-410A Refrigerant, Flowrator Metering Device, 3/8 in Liquid Line, 3/4 in Suction Line, Copper Tube, Cased, Galv Cabinet, 17-1/2 in W x 21-1/2 in D x 20 in H, CC36A3G-175R-000
** FOR SERVICE ONLY - NOT TO BE INSTALLED WITH NEW OUTDOOR UNIT **
| Air Flow Type | : | Upflow/Downflow |
| Coil Configuration | : | Upflow/Downflow |
| Dimensions | : | 17-1/2 in W x 20 in H x 21-1/2 in D |
| Enclosure Type | : | Cased |
| Liquid Line Size | : | 3/8 in |
| Metering Device | : | Piston |
| Nominal Capacity | : | 2.5 - 3.0 Ton |
| Refrigerant Type | : | R410A |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 2.5 - 3.0 Ton |
| Width | : | 17-1/2 In |
- Rifled copper tubing, enhanced aluminum fins
- Immersion-tested at 500 psi, then nitrogen-pressurized and sealed
- Right hand refrigerant and plumbing connections
- Externally mounted flowrate body with Schrader valve for hiss-testing
- Upflow without field modification
- Galv cabinet - no paint
- Downflow applications require plate kit (included)
- Split access doors in front for easy service
- Fully insulated cabinets with faced insulation
Installation Manual
