Amtrol® 390935
  1. pin-int

Amtrol® 390935

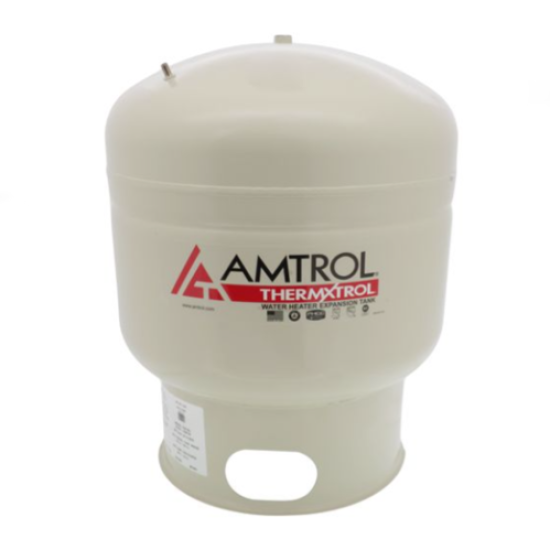

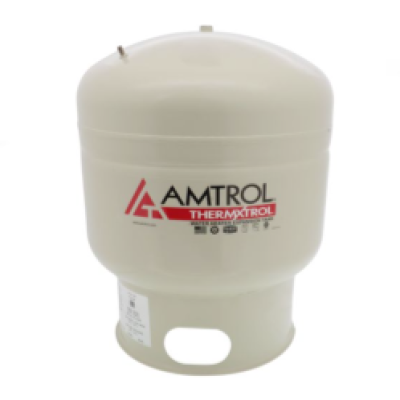

AMTROL THERM-X-TROL ST-25V Expansion Tank, 10.3 Gallon Volume

  • Manufacturers: Amtrol
  • Brand Name: Amtrol®
  • Part#: 103417
  • MPN: 390935
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading
Specifications
  • Tank Volume: 10.3 Gallons
  • Diameter: 15-3/8"
  • Height: 19-1/4"
  • System Connection: 3/4" NPT

Performance Data
  • Utilizes internal plastic liner for corrosion resistance in system with high oxygen content or non-barrier tubing
  • Pre-charge should be adjusted to equal system fill pressure
  • Brass fitting polypropyline liner for corrosion resistance
  • Maximum working pressure: 150 psig
  • Maximum operating temperature: 200 degrees F
