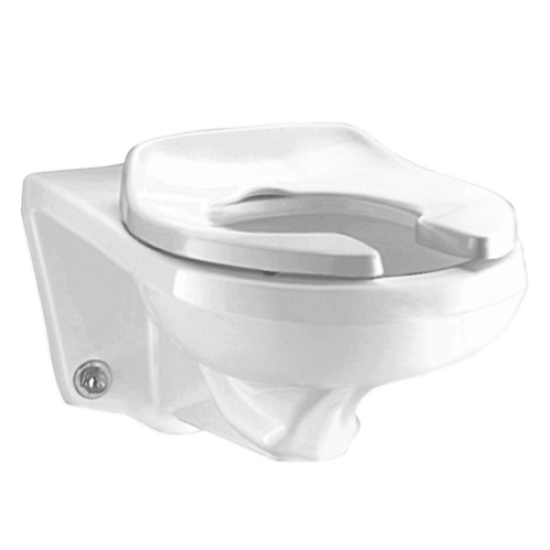

American Standard 2294.011EC.020

• Afwall® ADA replaces standard wall-hung 3.5 or 1.6 models and rough-ins at 16-1/8" (410 mm) rim height to meet ADA with no need to modify the existing carrier or through-wall supply – providing centerline of current outlet is 5-1/4" (133 mm) above finished floor
• Wall-hung elongated flushometer bowl, less seat
• High Efficiency Toilet (HET) operates in the range of 1.28 gpf – 1.6 gpf (4.8 Lpf – 6.0 Lpf)

Feature

• Afwall® ADA replaces standard wall-hung 3.5 or 1.6 models and rough-ins at 16-1/8" (410 mm) rim height to meet ADA with no need to modify the existing carrier or through-wall supply – providing centerline of current outlet is 5-1/4" (133 mm) above finished floor
• Wall-hung elongated flushometer bowl, less seat
• High Efficiency Toilet (HET) operates in the range of 1.28 gpf – 1.6 gpf (4.8 Lpf – 6.0 Lpf)
• EverClean® Antimicrobial Surface inhibits the growth of stain and odor causing bacteria, mold and mildew on the surface
• Condensation channel
• Powerful direct-fed siphon jet flush action
• 2-1/8" (54 mm) fully-glazed trapway
• 1-1/2" (38 mm) inlet spud
• Includes flush valve rough-in adapter kit
