RECTORSEAL RSH-50 VRMDC

Surge Protection 50kA/VRMDC Kit with Disconnect Breaker

  • Manufacturers: RECTORSEAL
  • Brand Name: RECTORSEAL
  • Part#: 558326
  • MPN: RSH-50 VRMDC
  • UOM: ea
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

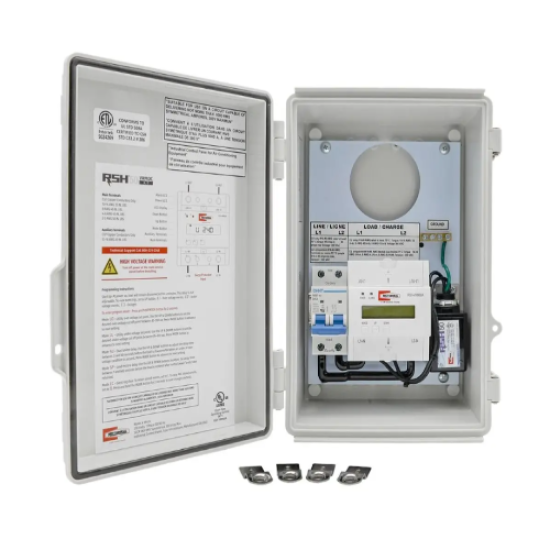

The RSH-50 VRMDC KIT combines the VRM60A, RSH-50, & 60A disconnect breaker in a NEMA 3R enclosure, for an all-in-one equipment solution. The RSH-50 uses Gas Discharge Tube (GDT) Technology along with Thermally Fused Metal Oxide Varistors (TMOV) for ultimate protection.

  • RSH-50 Surge Protector, Voltage Range Monitor, and 60A Disconnect Breaker inside a NEMA 3R/IP66 enclosure
  • Over-Under Voltage Protection with Adjustable Auto Cut-Off and Auto Restore Delay Time; Over-Under Voltage Cutoff Delay can be adjusted from 0.5 to 60 Seconds; Load Restore Delay adjustable from 1 to 600 Seconds 120/240 Single Phase.
  • Magnetic Latching Relays for Maximum Reliability
  • Large Easy to Read LCD Digital Display with Dual Red and Green LED Diagnostics Indicators
  • Easy Set Up, Field Programmable, No Laptop or Programming Tool Required
  • pdfInstallation Manual https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/RSH-50 VRMDC KIT-IM-R50366-0223-WEB.pdf
  • pdfSpecification Guide https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/RSH-50 VRMDC KIT PDS-R50366-0523_English.pdf
