Ducane™ 80G1DF070AE12
  1. pin-int

Ducane™ 80G1DF070AE12

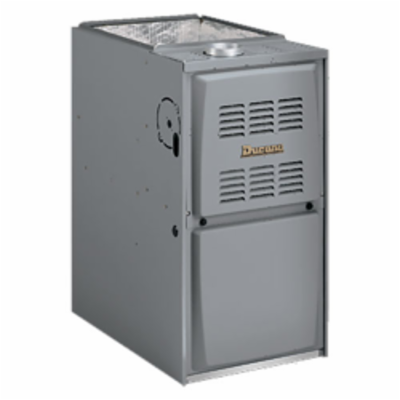

Ducane™ 80G1 Single Stage Constant Torque Downflow Gas Furnace, 66000 Btu Input, 54000 Btu Output, 80% ICS AFUE

  • Manufacturers: Allied Air Enterprises
  • Brand Name: Ducane™
  • Part#: 445628
  • MPN: 80G1DF070AE12
  • UOM: ea
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

Ducane™ Gas Furnace, Single Stage Constant Torque Downflow, Series: 80G1, 66000 Btu Input, 54000 Btu Output, 120 VAC, 80% ICS AFUE, 33 in H x 14-1/2 in W x 28-3/8 in D

AFUE Rating      :      80% ICS
Dimensions      :      33 in H x 14-1/2 in W x 28-3/8 in D
Input Capacity      :      66000
Output Capacity      :      54000
Series      :      80G1
Supply Opening Size      :      1/2 in
Type      :      Single Stage Constant Torque
Voltage Rating      :      120 VAC
  • Left or right utility connections
  • Aluminized steel tapered crimped non-welded clam shell heat exchanger design
  • Multi-speed high efficiency (constant torque) blower motor
  • Rotatable draft inducer for venting flexibility
  • Easily removable slide out blower design
  • pdfBrochure https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Ducane_80_Furnace_bro.pdf
  • pdfData/Spec Sheet https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Ducane_80G1E_Tech_Specs_0819.pdf
