Sharkbite® U5260LF

1" x 1" Elbow with Drain/Vent, 90 deg, SharkBite U5248LF

  • Manufacturers: Reliance Worldwide Corporation
  • Brand Name: Sharkbite®
  • Part#: 445375
  • MPN: U5260LF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

Each Brass Push 90° Elbow with Drain / Vent allows for water to be drained from the line if needed. Common applications include draining irrigation systems or hose bibbs when winterizing. Compatible with PEX, copper, CPVC, PE-RT and SDR-9 HDPE pipe. Ideal for working in tight spaces. Faster install time and ease of use reduces installation errors.

Angle      :      90
Fitting/Connector Type      :      Elbow
Nominal Size      :      1"
  • Compatible with PEX, copper, CPVC, PE-RT and SDR-9 HDPE pipes in any combination.
  • No special tools, crimping, glue or soldering required.
  • Can be installed in wet lines.
  • Approved for underground and behind-the-wall applications with no access panels (wrapping required when burying underground).
  • Large diameter fittings (1-1/4 in. - 2 in.) require a Stiffener (sold separately) when connecting to PEX pipe.

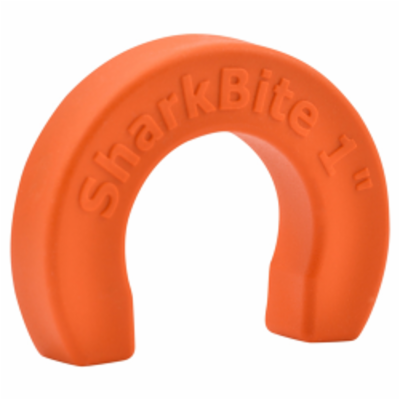

  • Remove using a Disconnect Clip or Disconnect Tongs (both sold separately).
  • Rated for 200 psi and 200°F (93°C).
