GE Appliances NF80U070V3A
  1. pin-int

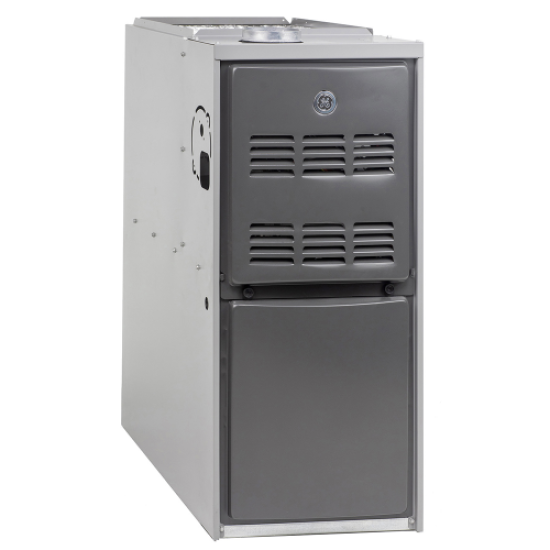

GE Appliances NF80U070V3A

70K BTU 80% AFUE Two-Stage Upflow/Horizontal Flow Gas Furnace, 3-Ton Blower

  • Manufacturers: GE Appliances
  • Brand Name: GE Appliances
  • Part#: 518567
  • MPN: NF80U070V3A
  • UOM: EA
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

GE Air & Water NF80U070V3A 70K BTU 80% AFUE Two-Stage Upflow/Horizontal Flow Gas Furnace, 3-Ton Blower

AFUE Rating      :      80%
Cabinet Width      :      14.5"
Cooling Capacity      :      3 Ton
Flow Direction      :      Upflow/Horizontal
Input      :      66,000 Btuh / 2nd Stage
Output      :      52,000 Btuh / 2nd Stage

  • Crimped no-weld aluminized clam shell heat exchanger construction

  • ECM variable speed blower motor

  • Easily removable slide out blower design

  • Two-stage gas valve

  • Self-diagnostics saves last 5 fault codes regardless of power interruption

  • Left or right utility connections

  • Zero step horizontal conversion

  • Removable floor base for bottom return air

  • Rotatable draft inducer for venting flexibility

  • pdfInstallation Manual https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/NF80UV_Installation_Guide_11.14.22.pdf
  • pdfOwners Manual https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/NF80 Owners Manual.pdf
  • linkParts List https://www.ordergeapplianceparts.com/products/ge-appliances/hvac-gas-furnace/nf80u070v3a56?searchId=DhBlAAcD%2FgIBTmFtZf9ORjgwVTA3MFYzQfwE%2Fg4BRGF0YXNldElkc%2F8z%2Ff0%3D
  • pdfSpecification Sheet https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/NF80V Spec Guide.pdf
  • pdfWarranty https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/NF80 Warranty.pdf
