Bradford White® M-3-ST80R5
  1. pin-int

Bradford White® M-3-ST80R5

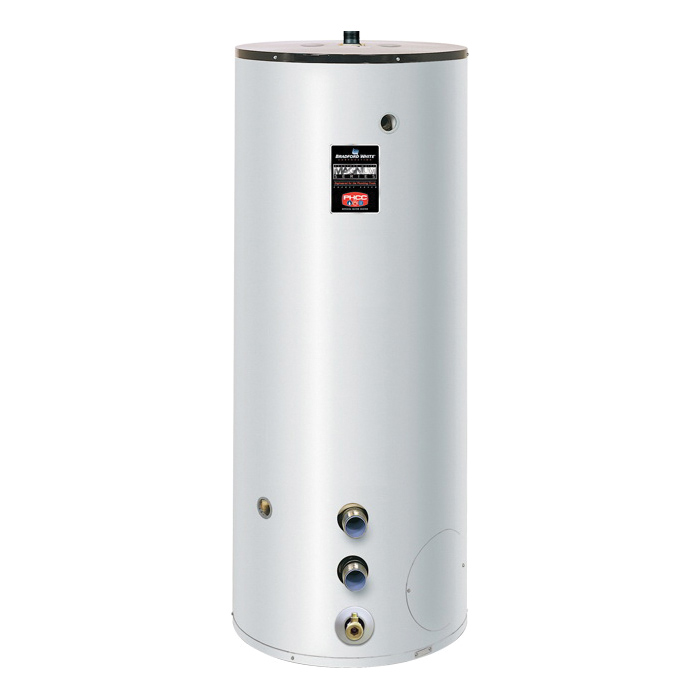

Bradford White® M3ST80R5 80 Gallon Small Volume Upright Jacketed Storage Tank, 24 in Dia, 2 in NPT Inlet

  • Manufacturers: Bradford White
  • Brand Name: Bradford White®
  • Part#: 336848
  • MPN: M-3-ST80R5
  • UPC: 671632015016
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading branchavailability

Bradford White® Jacketed Storage Tank, Small Volume Upright, 80 gal Tank, 24 in Diameter, 2 in NPT Inlet, 150 psi Pressure, Steel

Diameter      :      24 in
Inlet Size      :      2 in NPT
Material      :      Steel
Pressure Rating      :      150 psi
Tank Capacity      :      80 gal
Type      :      Small Volume Upright
  • Vitraglas® lining
  • 2 in Non-CFC foam insulation: Covers the sides and top of tank, reducing the amount of heat loss
  • Water connections: 2 in NPT factory installed true dielectric fittings extend water heater life and eases installation
  • Hand hole cleanout: Allows inspection of tank interior and facilitates the removal of sediment deposits
  • Two protective magnesium anode rods
  • 3/4 in NPT aquastat fitting
  • Designed for storage of potable water up to 180 deg F
  • Low restriction brass drain valve
  • 300 psi (2068 kPa) test pressure
  • pdfInstallation Manual https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/M3_INSTALLMANUAL.pdf
  • pdfParts List https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/M3_PARTSLIST.pdf
  • pdfSpecification Sheet https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/M3_SPECSHEET.pdf
