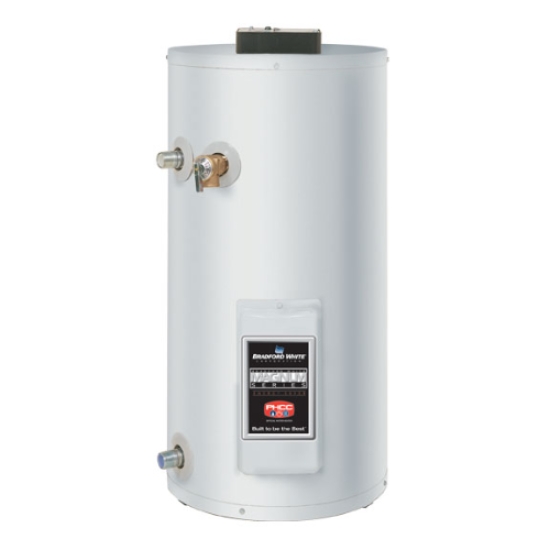

Bradford White® LE16U3-1NAL
Bradford White® ElectriFLEX LD™ Light Duty Utility Electric Water Heater, 6 Gallon, 1.5 kW Power Rating, 120 VAC, 1 ph Phase
These small but powerful units fit in just about any location. Available from 6 to 20 gal, they fill the bill when space is at a premium and are field convertible for various wiring configurations.
Bradford White® ElectriFLEX LD™ Electric Water Heater, Light Duty Utility, Series: LE16U3-1, 6 gal Tank, 120 VAC, 1.5 kW Power, 1 ph, 3/4 in NPT Water Connection, (1) Screw-In Copper Heating Element, 6 gph Recovery Rate, 150 psi Pressure, ASME Yes/No: No, Steel, 14 in Dia x 16-1/2 in H Dimensions
| ASME Yes/No | : | No |
| Dimensions | : | 14 in Dia x 16-1/2 in H |
| Heating Element | : | (1) Screw-In Copper |
| Material | : | Steel |
| Phase | : | 1 ph |
| Power Rating | : | 1.5 kW |
| Pressure Rating | : | 150 psi |
| Recovery Rate | : | 6 gph |
| Series | : | LE16U3-1 |
| Tank Capacity | : | 6 gal |
| Type | : | Light Duty Utility |
| Voltage Rating | : | 120 VAC |
| Water Connection | : | 3/4 in NPT |
- Fully automatic thermostat control: Fast acting surface-mount thermostat with high limit energy cut-off (manual reset) for safety
- Direct heat transfer with a single immersed element: Transfers heat directly and efficiently to the water
- Vitraglas® lining
- Vitraglas® is fused to the steel surface by firing at a temperature of over 1600 deg F
- Insulation system: 1 in non-CFC foam insulation covers the sides and top of the tank, reducing the amount of heat loss
- Results in less energy consumption, improved operation efficiencies and jacket rigidity
- Water connection: 3/4 in NPT factory installed true dielectric fittings extend water heater life and simplify water line connections
- Protective magnesium anode rod: Provide added protection against corrosion for long-term, trouble free service
- Steel tank: Heavy gauge steel automatically formed, rolled and welded to assure a continuous seam for glass lining
- Copper screw type immersion element
- Hydrojet® sediment reduction system
- Field convertible
Conversion Instructions
