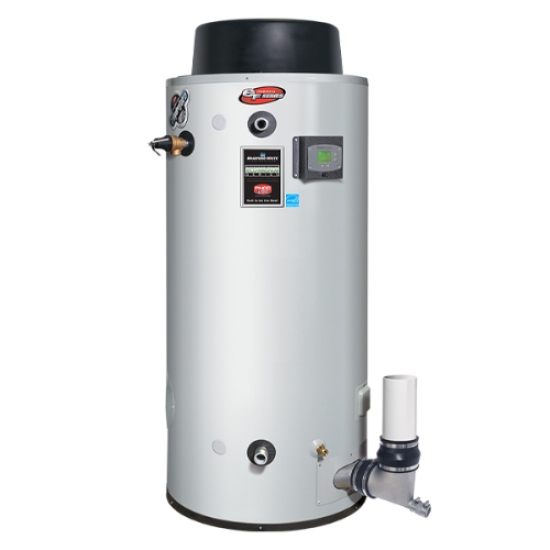

Bradford White® Gas Water Heater, Ultra High Efficiency, Series: eF Series®, 399999 Btu/hr Heating, Natural Gas, 1 in Gas Connection, 119 gal Tank, Direct Spark Ignition, Direct/Power Vent, 4 in Vent Size, 456 gph at 100 deg F Rise Recovery, 1-1/2 in NPT Water Connection, 150 psi, 180 deg F, Ultra Low NOx: No, ASME Yes/No: No, Steel, Vitraglas®, 33 in Dia x 35 in D x 77-1/8 in H, Domestic
ASME Yes/No |
: |
No |
Dimensions |
: |
33 in Dia x 35 in D x 77-1/8 in H |
Finish |
: |
Vitraglas® |
Fuel Type |
: |
Natural Gas |
Gas Connection |
: |
1 in |
Heating Capacity |
: |
399999 Btu/hr |
Ignition Type |
: |
Direct Spark |
Material |
: |
Steel |
Pressure Rating |
: |
150 psi |
Recovery Rate |
: |
456 gph at 100 deg F Rise |
Series |
: |
eF Series® |
Tank Capacity |
: |
119 gal |
Temperature Rating |
: |
180 deg F |
Type |
: |
Ultra High Efficiency |
Ultra Low NOx |
: |
No |
Vent Size |
: |
4 in |
Vent Type |
: |
Direct/Power |
Water Connection |
: |
1-1/2 in NPT |
- Thermal efficiency 94% - ultra high efficiency results in less fuel consumption and greater hot water recovery
- ICON HD™ - intelligent proven design combines temperature control, diagnostic codes and system ignition functions into a single control board with a digital LCD display
- Factory installed Hydrojet® sediment reduction system - cold water inlet sediment reducing device helps prevent sediment build up in the tank
- Operation mode - two different digitally displayed operation modes have the capability of adjusting the temperature setting up to 180 deg F and adjusting the degree setting
- Service mode - eight different digitally displayed service screens can be easily cycled through by pressing the select button
- Down-fired premix power burner - a self compensating negative regulation system automatically increases or decreases fuel flow when a change in combustion air is detected
- Flexible venting - the eF Series® can vent vertically or horizontally with either 4 in or 6 in PVC, CPVC or ABS (not approved for Canada) vent pipe, and is approved for direct vent closed combustion applications, or those applications that require inside air for combustion
- The eF Series® is also approved for unbalanced venting, which means the air intake pipe doesn't have to be vented the same distance as the exhaust
- Submerged combustion chamber - minimizes radiant heat loss for better efficiency
- Three pass heat exchanger system - provides maximum heat transfer surface area
- Ultra quiet operation
- A single exhaust pressure switch
- 1 in NPT side connections for space heating
- Sanitizing capability - temperature setting up to 180 deg F
- Low restrictive brass drain valve - durable tamper proof design
- Complies with jurisdictions having 14ng/J NOx regs
-
Installation Manual
https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/EF120T_series_iomanual_53506.pdf
-
Parts List
https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/EF120T_series_partslist_53521.pdf
-
Service Manual
https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/EF120T_series_servicemanual_53597.pdf
-
Specification Sheet
https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/EF120T_series_specsheet_801.pdf
