RectorSeal® RSH-50
  1. pin-int

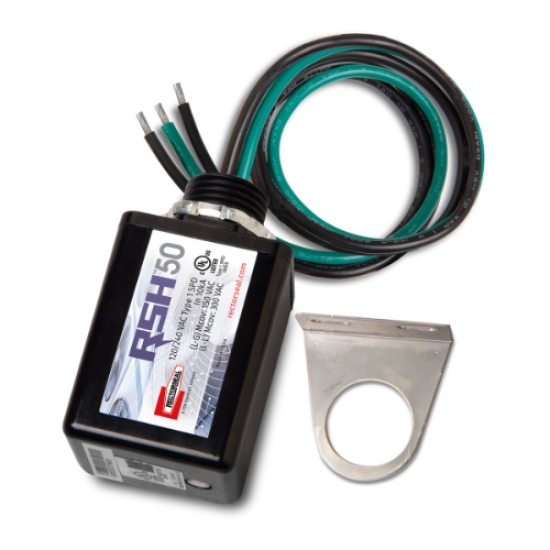

RectorSeal® RSH-50

Surge Protective Device (SPD) for Single-Phase System120/240 VAC Type 1, RSH-50

  • Manufacturers: RECTORSEAL
  • Brand Name: RectorSeal®
  • Part#: 461257
  • MPN: RSH-50
  • UPC: 21449964159
  • UOM: ea
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

Application • Protect HVAC equipment from electrical surges • Protects from up to 50,000-amp single surges and up to 10,000-amp repetitive surges • Type 1 Device - can be mounted anywhere in the electrical system


Recommended for • Residential and commercial use • All single phase 120/240 VAC outside condensing units and indoor air handlers

  • Long-Lasting Gas Discharge Tube Technology
  • TFMOV Technology
  • Limited Lifetime Warranty
  • Green LED Easily Indicates Protection
  • Weather-Rated under NEMA 4X
  • Fits all single-phase units
  • Operating Voltage - 120/240VAC
  • Max discharge current per phase - 50kA (1 hit survivability)
  • Nominal discharge current - 10kA (15 hits survivability)
  • Short circuit current - 200kA
  • pdfBrochure https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Surge protector homeowner brochure.pdf
  • pdfInstallation Manual https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/13771_88180004.pdf
