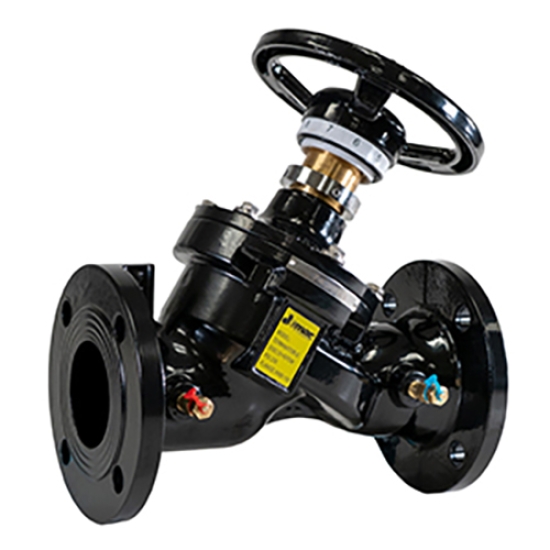

Jomar Valve® TG-GFF
Jomar Valve® TG-GFF Manual Balancing Valve, 2-1/2 in Nominal, Flanged End Style, 230 psi WOG Pressure, 45 to 210 gpm Flow Rate, Ductile Iron Body
Jomar Valve® Balancing Valve, Manual, 2-1/2 in Nominal, Flanged End Style, 230 psi WOG Pressure, 15 to 250 deg F, 45 to 210 gpm Flow Rate, Handwheel Actuator, Ductile Iron Body, 410 Stainless Steel/Ductile Iron Trim, Graphite Packing Softgoods, 11.42 in L Dimensions
| Actuator Type | : | Handwheel |
| Body Material | : | Ductile Iron |
| Dimensions | : | 11.42 in L |
| End Style | : | Flanged |
| Flow Rate | : | 45 to 210 gpm |
| Nominal Size | : | 2-1/2 in |
| Pressure Rating | : | 230 psi WOG |
| Softgoods Material | : | Graphite Packing |
| Temperature Rating | : | 15 to 250 deg F |
| Trim Material | : | 410 Stainless Steel/Ductile Iron |
| Type | : | Manual |
- Integral metering orifice plate
- +/-5% flow measurement accuracy
- Memory stop handle setting
- Pressure and temperature ports
- Face to face: DIN 3202-1/F1 EN-558-1 series 1
- Fixed orifice globe valve
- Terminator G
- EPDM coated ductile iron disc
