CRESLINE® 18020
  1. pin-int

CRESLINE® 18020

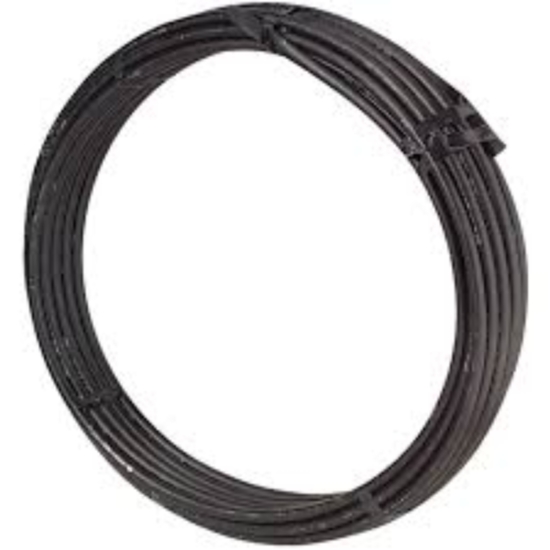

1" x 300' Flexible Pipe, SIDR 9, Plain, Polyethylene, ASTM D2339, AWWA C901, NSF Approved, CRESLINE® 18020

  • Manufacturers: Cresline Plastic Pipe
  • Brand Name: CRESLINE®
  • Part#: 449553
  • MPN: 18020
  • UPC: 098248180202
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading branchavailability

CRESLINE® Flexible Pipe, 1 in Nominal, Plain, 1.049 in Inside Dia, 300 ft Length, 0.117 in Wall Thickness, SIDR 9, 200 psi Working, Polyethylene, ASTM D2339, AWWA C901, NSF Approved

Accessory Type      :      Pipe
End Style      :      Plain
Inside Diameter      :      1.049 in
Length      :      300 ft
Material      :      Polyethylene
Nominal Size      :      1 in
Schedule Rating      :      SIDR 9
Specifications      :      ASTM D2339, AWWA C901, NSF Approved
Wall Thickness      :      0.117 in
Working Pressure      :      200 psi
  • 11 in expansion or contraction per 1000 ft per 10 deg F temperature change
  • 200 psi at 73.4 deg F and below, 155 psi at 100 deg F, 125 psi at 120 deg F and 100 psi at 140 deg F
  • Yellow label/black print
  • 4710 high density polyethylene
  • Pressure rating is the estimated maximum pressure that water as the medium in the pipe can exert continuously with a high degree of certainty that failure of the pipe will not occur
  • Cresline hd flexible plastic pipe may be used on submersible pumps of 1.5 hp or less
