Honeywell TH6210U2001/U
  1. pin-int

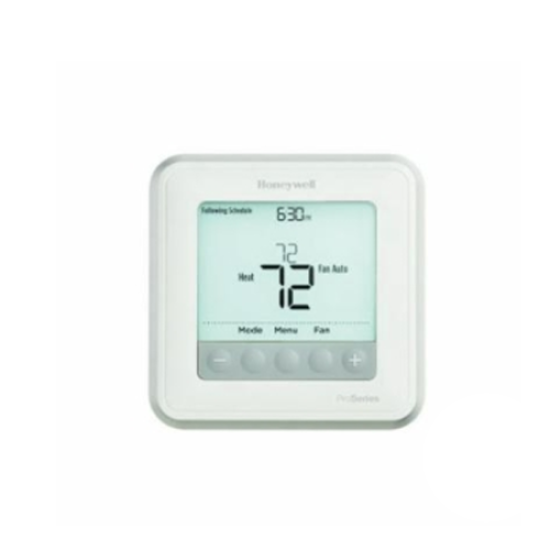

Honeywell TH6210U2001/U

Honeywell Tradeline® TH6210U2001/U 6000 Thermostat, Programmable Thermostat, 40 to 90 deg F Heat/50 to 99 deg F Cool Control, 1 deg F Differential, Relay Switch, RC, R, C, W, W2, O/B, Y, G, K, L/A, E Terminal, Import

  • Manufacturers: Honeywell
  • Brand Name: Honeywell
  • Part#: 361979
  • MPN: TH6210U2001/U
  • UPC: 085267554404
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

The T Series programmable thermostat streamlines everything from product selection and installation to customer service and support. With a standard footprint and simple interface, the T Series will enhance the entire thermostat experience for you and your customers alike.

Honeywell Tradeline® Thermostat, Series: 6000, Programmable Thermostat, 40 to 90 deg F Heat/50 to 99 deg F Cool Control Range, 1 deg F Differential, Relay Switch, Terminal Designations: RC, R, C, W, W2, O/B, Y, G, K, L/A, E, System Switching: Heat/Off/Cool/Auto/Emergency Heat, Fan Switching: Auto/On/Circulate/Follow Schedule, 3 Stage, 2 Heat Pump, 1 Conventional Stages Heat, 1 Heat Pump, 1 Conventional Stages Cool, 5 to 90% Non-Condensing Humidity, 5.44 sq-in LED Back-Lit, 20 to 30 VAC, Battery/Hardwired, 4-1/16 in L x 4-1/16 in W x 1-3/32 in D, Import

Control Range      :      40 to 90 deg F Heat/50 to 99 deg F Cool
Differential      :      1 deg F
Dimensions      :      4-1/16 in L x 4-1/16 in W x 1-3/32 in D
Display Type      :      5.44 sq-in LED Back-Lit
Domestic/Import      :      Import
Fan Switching      :      Auto/On/Circulate/Follow Schedule
Humidity Range      :      5 to 90% Non-Condensing
Number of Stages      :      3
Power Source      :      Battery/Hardwired
Series      :      6000
Stages Cool      :      1 Heat Pump, 1 Conventional
Stages Heat      :      2 Heat Pump, 1 Conventional
Switch Type      :      Relay
System Switching      :      Heat/Off/Cool/Auto/Emergency Heat
Terminal Designations      :      RC, R, C, W, W2, O/B, Y, G, K, L/A, E
Thermostat Type      :      Programmable
Voltage Rating      :      20 to 30 VAC
  • Large display, soft key controls
  • 37 to 102 deg F operating temperature
  • UWP mounting system
  • Ambient air temperature control mode selection
  • Automatic or manual changeover
  • pdfData/Spec Sheet-1 https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Honeywell_TH6210U2001U_Data_Sheet.pdf
  • pdfInstruction/Installation Sheet https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Honeywell_TH6210U2001U_Installation_Instruction.pdf
