MegaPress® XL 26685

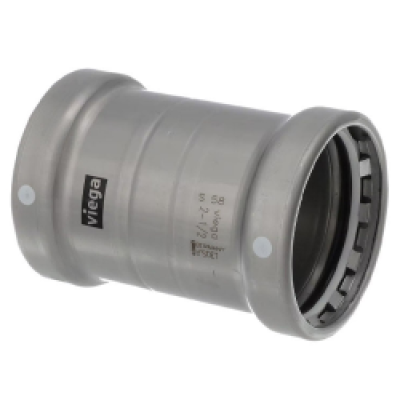

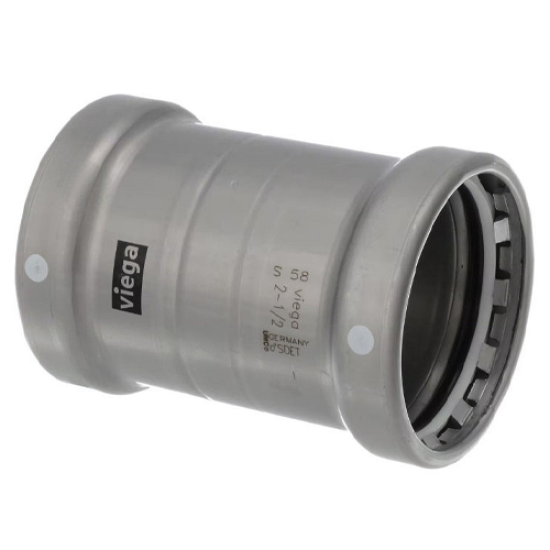

2-1/2" Press Coupling, Carbon Steel, MegaPress® XL 26685

  • Manufacturers: Viega
  • Brand Name: MegaPress® XL
  • Part#: 393891
  • MPN: 26685
  • UPC: 691514266855
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading branchavailability

Viega MegaPress® XL is a carbon steel, cold press system designed for use in chilled water, hydronic heating, compressed air and fire sprinkler applications. Viega MegaPress® XL fittings are designed for use in piping systems utilizing ASTM A53, A106, A135 and A795 SCH 10 SCH 40/STD black steel pipe.

MegaPress® XL Coupling, Fitting/Connector Type: Coupling, 2-1/2 in Nominal, Press, 200 psi, 14 to 284 deg F, Carbon Steel, 4.92 in L, Import

Dimensions      :      4.92 in L
Domestic/Import      :      Import
End Style      :      Press
Fitting/Connector Type      :      Coupling
Material      :      Carbon Steel
Nominal Size      :      2-1/2 in
Pressure Rating      :      200 psi
Temperature Rating      :      14 to 284 deg F
  • Patented Viega Smart Connect® makes secure connection in less than 7 seconds
  • Minimizes system downtime by allowing for wet connection
  • Fast and easy to use
  • No threading, cutting oil, or heavy equipment needed
  • Helps installers easily identify unpressed connections during pressure testing
  • Model 4815.5XL
  • Without stop
