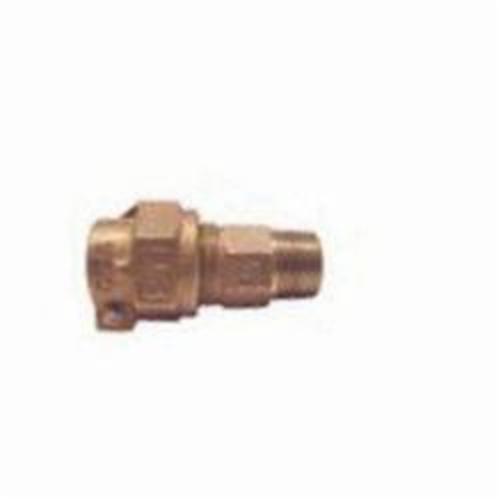

LEGEND Coupling, T-4300NL Series, 1 x 3/4 in Nominal Size, Pack Joint (CTS) x MNPT, 3-1/4 in Length, 100 psi, 100 deg F, Cast Bronze
End Style |
: |
Pack Joint (CTS) x MNPT |
Length |
: |
3-1/4 in |
Material |
: |
Cast Bronze |
Nominal Size |
: |
1 x 3/4 in |
Pressure Rating |
: |
100 psi |
Series |
: |
T-4300NL |
Temperature Rating |
: |
100 deg F |
- Lead-free design is suitable for all no-lead potable water installations, in full compliance of all lead-free plumbing laws
- CTS pack-joint end connections provide the maximum pullout resistance against internal pressure variations and backfilling stress
- Insert stiffeners (Model T-4500, sold separately) are required at each pack-joint connection, when installing polyethylene (PE) plastic tubing
- Third-party tested and certified in compliance with U.S. Federal Public Law 111-380 (National lead-free plumbing law)
- Manufactured in full compliance to AWWA C800 Specifications (current revision)
- Male pipe thread end connections comply with ANSI/ASME B1.20.1
- Types K or L copper water tubing compliant with ASTM B88
- Cast bronze pack-joint nut
- Buna-N (NBR) nitrilic rubber pack-joint gasket
- Nylon resin pack-joint anti-friction ring
- AISI grade 304 stainless steel pack-joint clamp bolt
- Polyethylene plastic tubing compliant with ASTM D2737 SDR 9 (Model T-4500 insert stiffener required)
-
