ICM™ by Packard ICM517
  1. pin-int

ICM™ by Packard ICM517

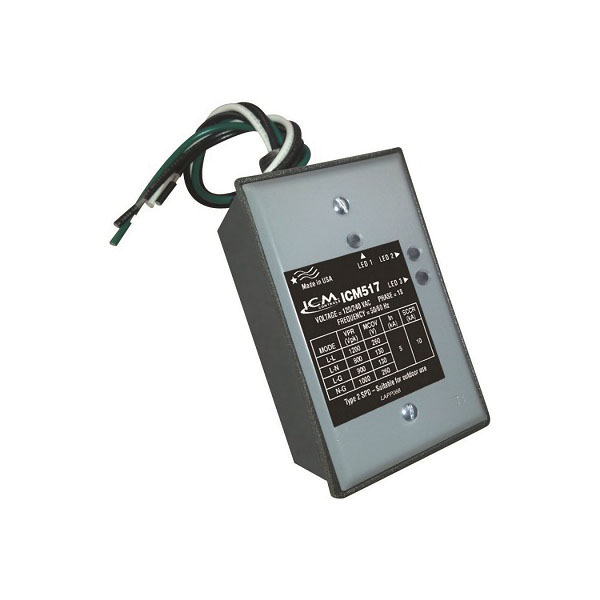

ICM™ by Packard ICM517 Surge Protector, 120/240 VAC, 20 to 60 A, Steel Enclosure, Domestic

  • Manufacturers: Packard
  • Brand Name: ICM™ by Packard
  • Part#: 306459
  • MPN: ICM517
  • UPC: 800442029542
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

ICM™ by Packard Surge Protector, 120/240 VAC, 20 to 60 A, Steel Enclosure, 5 in L x 2.78 in W x 2.16 in D, Domestic

Amperage Rating      :      20 to 60 A
Dimensions      :      5 in L x 2.78 in W x 2.16 in D
Domestic/Import      :      Domestic
Material      :      Steel Enclosure
Voltage Rating      :      120/240 VAC
Warranty      :      Limited Lifetime
  • 1020 J maximum energy dissipation maximum surge current
  • 100000 A maximum surge current
  • Installation point: electrical panel, service disconnect
  • L-L, L-N, L-G, N-G AC protection modes
  • 3/4 in conduit connection
  • Suitable for use on a circuit capable of delivering not more than 10,000 rms symmetrical amps
  • Protected by a circuit breaker rated 20 to 60 A maximum and 120 V minimum
  • Single phase surge protective device
  • Rugged reliable
  • Easy indoor/outdoor Installation
  • LED status indicators
  • Direct replacement for Supco SCM Plus/SCM150
