ICM™ by Packard ICM286

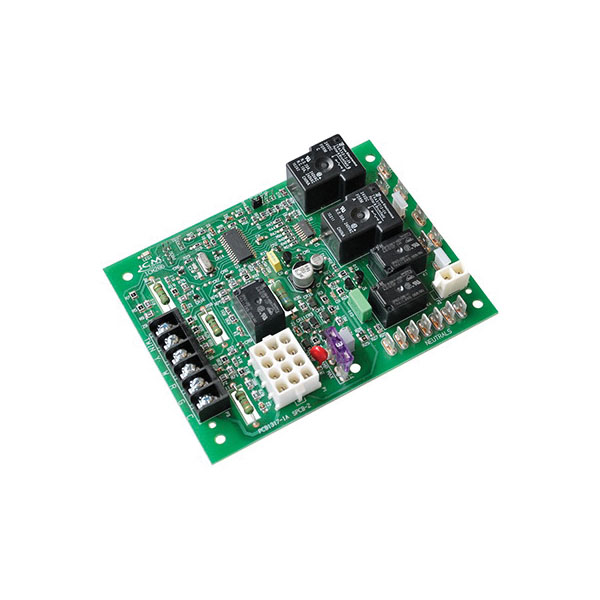

ICM™ by Packard Furnace Control Board, Domestic

• Microprocessor-based precision
• Controls inducer and blower fan motors, hot surface igniter and gas valve
• Monitors timing, trial for ignition, flame sensing, pressure and limit switches, and lockout
• Designed for 100% gas shutoff in case of ignition failure
• Reverse polarity protection
• Twinning compatible with another ICM286 control board
• Compatible with LP or natural gas
• Diagnostic LED to aid in testing/troubleshooting
• 7 sec trial for ignition
• 15 sec pre-purge time
• 7 sec igniter warm up time
• 15 sec post-purge time
• Total trials for ignition is 3 (auto reset after 1 hr)
• 30 sec heat blower on
• Selectable 90/120/150/180 sec heat blower off
• 1 sec fan (heat) on/off delay
• Cool On: 5 sec
• Cool Off: 45 sec
• Direct Replacement For Goodman 0130F00005S/B18099-26S/PCBBF112S
