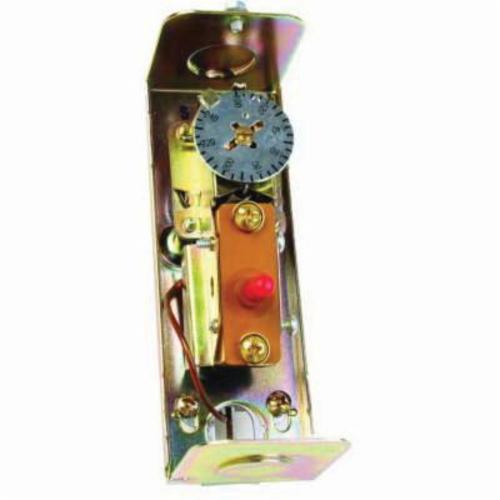

Honeywell L4006H1004/U

Honeywell L4006H1004/U Breaks on Rise Aquastat Controller, 120 to 240 VAC/0.25 to 12 VDC, 100 to 240 deg F, 5.1 to 48 A

  • Manufacturers: Honeywell
  • Brand Name: Honeywell
  • Part#: 376081
  • MPN: L4006H1004/U
  • UPC: 085267048972
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

Aquastat® Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks and other applications where temperature control is required. Honeywell's L4006 are used in applications that utilize the existing wells.

Honeywell Aquastat Controller, Breaks on Rise, 120 to 240 VAC/0.25 to 12 VDC, 100 to 240 deg F, 5.1 to 48 A, Horizontal/Vertical Mount, 3/8 x 2-7/8 in Copper Bulb, Micro Switch™ Snap-Acting Switch

Amperage Rating      :      5.1 to 48 A
Bulb Size      :      3/8 x 2-7/8 in Copper
Mounting Type      :      Horizontal/Vertical
Switch Type      :      Micro Switch™ Snap-Acting
Temperature Rating      :      100 to 240 deg F
Type      :      Breaks on Rise
Voltage Rating      :      120 to 240 VAC/0.25 to 12 VDC
Warranty      :      Limited
  • Totally enclosed Micro Switch™ snap acting switches operate on temperature rise to set point
  • Visible control point scale and external adjustments screw permit easy setting
  • Horizontal or vertical insertion of the sensing element
  • Direct or well immersion of the sensing element
  • Models available for strap-on mounting
  • Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications
  • TRADELINE® models include heat conductive compounds
  • 5.1 to 8 A at 120 to 240 VAC for full load
  • 30.6 to 48 A at 120 to 240 VAC for locked rotor
  • pdfManual https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Honeywell_S9200U1000_U_Guide.pdf
