Omega Flex FGP-WBTM-500

Omega Flex AutoFlare® FGP-WBTM-500 Wall Box With 90 deg Valve Assembly, 1/2 in, NPT, Domestic

  • Manufacturers: Omega Flex
  • Brand Name: Omega Flex
  • Part#: 87690
  • MPN: FGP-WBTM-500
  • UPC: 076335088006
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading branchavailability

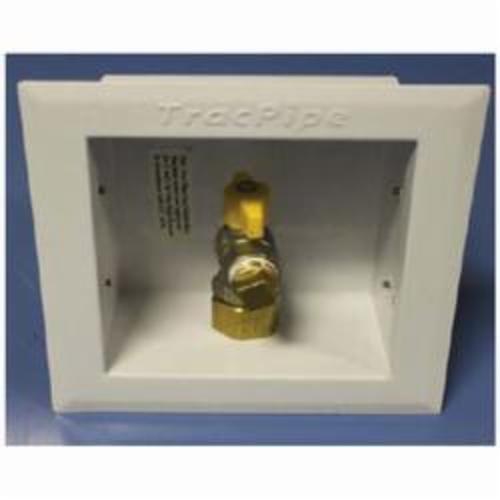

Metal wall box with valve for use with zero clearance appliance installations, reverse mounting tabs to accommodate double sheetrock walls, for indoor use only, wall box is fire rated to UL 1479.

Omega Flex AutoFlare® Wall Box, 1/2 in Nominal Size, NPT, 0.5 psig, 5 in Length, -20 to 200 deg F, Steel, Powder Coated, 5 in H x 3-1/8 in D, Domestic

Dimensions      :      5 in H x 3-1/8 in D
Domestic/Import      :      Domestic
End Style      :      NPT
Finish      :      Powder Coated
Length      :      5 in
Material      :      Steel
Nominal Size      :      1/2 in
Pressure Rating      :      0.5 psig
Temperature Rating      :      -20 to 200 deg F
Warranty      :      1 Year Limited
  • 60 psig max test pressure
  • 1-1/8 in nut
  • 1-1/8 in valve body
  • 6-3/4 x 6-3/4 in trim ring
  • Must be installed in accordance with the TracPipe® design guide and installation instructions and all applicable codes
  • For use with 1/2 in TracPipe® and CounterStrike®
  • pdfCatalog-1 https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Omega_Flex_FGP-LC_Catalog.pdf
  • pdfData/Spec Sheet-1 https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Omega_Flex_FGP-LC_Data_Sheet.pdf
