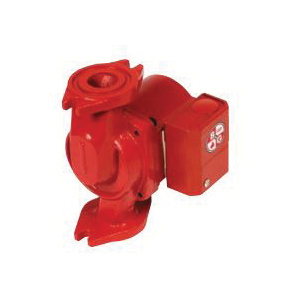

A flanged in-line system lubricated circulating pump designed specifically for quiet operation in a closed hydronic heating system.
Bell & Gossett Red Fox™ Wet Rotor Pump, Reliable Maintenance-Free, Model NRF-22, Series NRF, 92 W, 115 VAC, 0.8 A, 60 Hz, 150 psi Maximum, 2940 rpm Motor, Nylon®/PPO Impeller, In-Line Mount, 40 to 240 deg F, 6-3/8 in H x 6-3/16 in L
Amperage Rating |
: |
0.8 A |
Dimensions |
: |
6-3/8 in H x 6-3/16 in L |
Frequency Rating |
: |
60 Hz |
Impeller Type |
: |
Nylon®/PPO |
Maximum Pressure |
: |
150 psi |
Motor Speed |
: |
2940 rpm |
Mounting Type |
: |
In-Line |
Power Rating |
: |
92 W |
Series |
: |
NRF |
Temperature Rating |
: |
40 to 240 deg F |
Type |
: |
Reliable Maintenance-Free |
Voltage Rating |
: |
115 VAC |
Warranty |
: |
3 Years from Date of Manufacture or 18 Months from Date of Joining |
- High starting torque for dependable seasonal start-ups
- Unique Bell & Gossett DuraGlide™ bearing system assures years of trouble-free start-ups
- Closed impeller design improves operating efficiency
- Backed by Bell & Gossett's representatives and a 3 years warranty the best in the business
- DuraGlide bearing system incorporates several components working together to eliminate seasonal freeze-up
- Stabilized, heat resistant, polypropylene impeller, its closed design improves operating efficiency
- Self-cleaning particle shield protects the shaft and bearings from system start-up debris
- One-piece, high-nickel stainless steel stator can isolates the stator from system fluid and maintains precision bearing alignment for longer bearing life
- Carbon bearings, diamond-like ceramic shaft and generous clearances are more resistant to lime, chloride and oxide build-up
- Face plate and rotor sleeve feature corrosion resistant stainless steel construction for longer life
- Impedance protected
- Single speed motor
- 3/4, 1, 1-1/4 and 1-1/2 in NPT flange
- Model NRF-22
-
