Bell & Gossett 401488

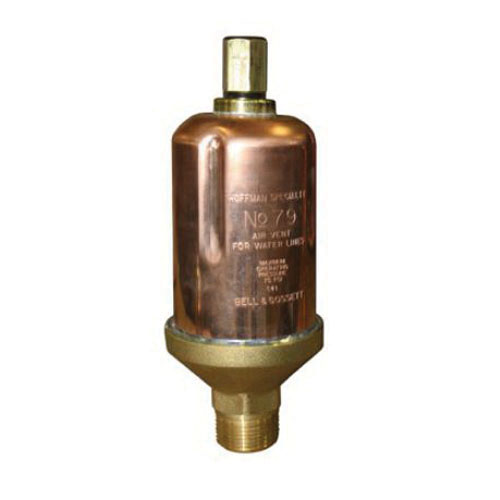

Bell & Gossett Hoffman Speciality® 79 Water Main Vent Valve, NPT, 75 psi, Brass

  • Manufacturers: Xylem
  • Brand Name: Bell & Gossett
  • Part#: 30743
  • MPN: 401488
  • UPC: 692266013605
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

Bell & Gossett Hoffman Speciality® Vent Valve, Water Main, Series: 79, NPT, 75 psi, 250 deg F, Media: Water, 6-5/8 in Inlet to Outlet Length, Brass Body, 2-1/2 in W

Body Material      :      Brass
Dimensions      :      2-1/2 in W
End Style      :      NPT
Inlet to Outlet Length      :      6-5/8 in
Media      :      Water
Pressure Rating      :      75 psi
Series      :      79
Temperature Rating      :      250 deg F
Type      :      Water Main
  • For use on hot or cold or glycol water mains and process applications with specific gravity greater than 0.7
  • Tapped at top for 1/8 in NPT safety drain connection for discharging moisture
  • Removable top
  • Built-in check valve
  • 1/2 in NPT female and 3/4 in NPT male straight shank
  • 200 psig maximum hydrostatic pressure
  • Model 79
