WATTS® 0881376
  1. pin-int

WATTS® 0881376

4"-7/8" H, Air Gap, Cast Iron, WATTS® 0881376

  • Manufacturers: Watts Water Technologies
  • Brand Name: WATTS®
  • Part#: 111368
  • MPN: 0881376
  • UPC: 098268104950
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading branchavailability

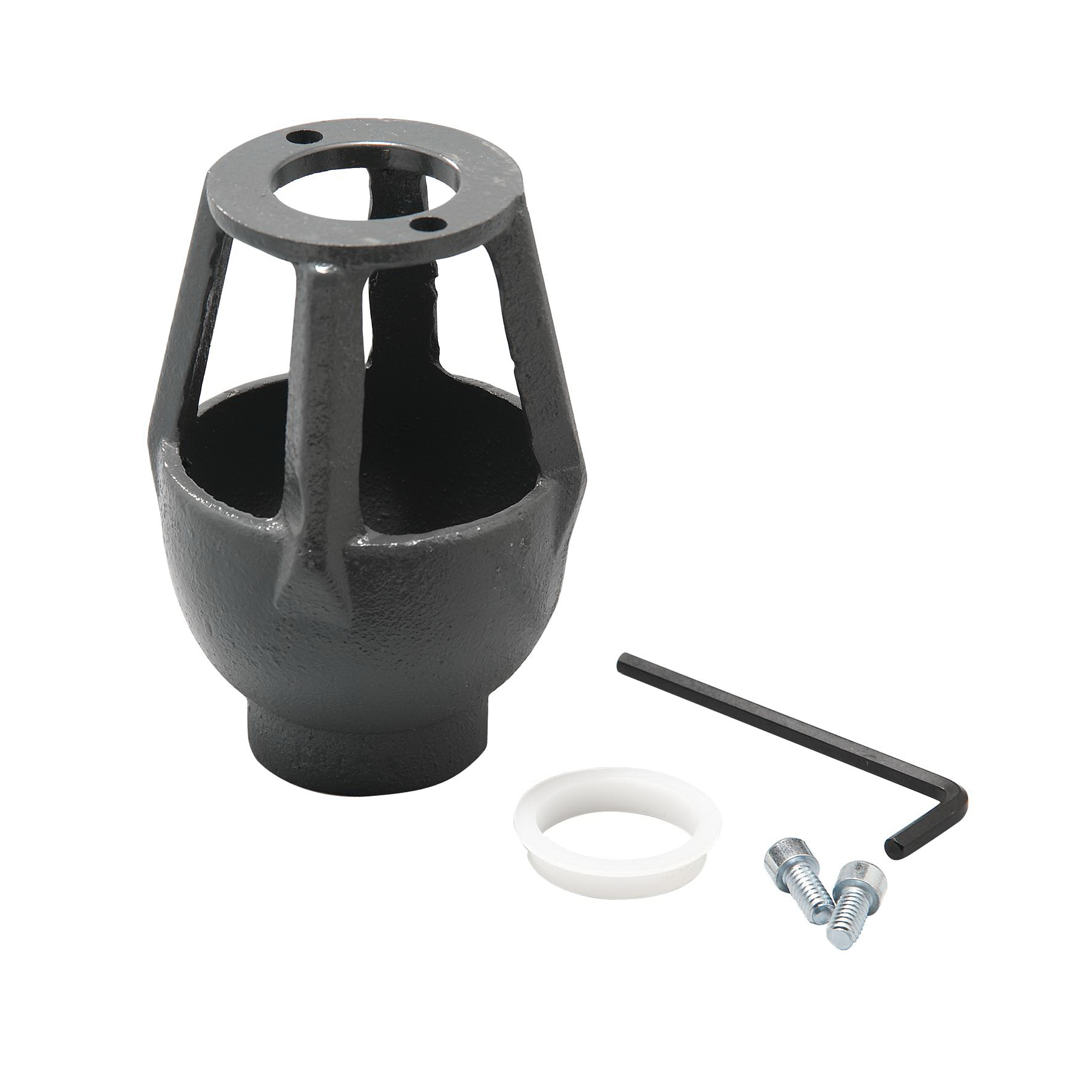

This air gap for reduced pressure zone assembly, 3/4-1 in series 009 and 909, 1-1-1/2 in series 009M2, and 1-1/4-2 in series 995, provides an unobstructed, physical separation between the discharge end of a potable water supply line and an open receiving vessel. The installation of an air gap and drain line are recommended on reduced pressure zone assemblies. It can be installed vertically or horizontally (vent elbow required for vertical installation).

WATTS® Air Gap, For Use With: 009/909/LF909 3/4 to 1 in Reduced Pressure Zone Assembly, 009/LF009M2 1 to 1-1/2 in Reduced Pressure Zone Assembly and 1-1/4 to 2 in Reduced Pressure Zone Assembly, Cast Iron, 3-1/4 in W x 4-7/8 in H

Dimensions      :      3-1/4 in W x 4-7/8 in H
Material      :      Cast Iron
Suitable For Use With      :      009/909/LF909 3/4 to 1 in Reduced Pressure Zone Assembly, 009/LF009M2 1 to 1-1/2 in Reduced Pressure Zone Assembly and 1-1/4 to 2 in Reduced Pressure Zone Assembly
Warranty      :      Limited
  • 1 in FNPT
  • Zinc plated steel fastener
  • pdfData/Spec Sheet-1 https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Watts_0881370_Data_Sheet.pdf
