ESP RSS-498-13

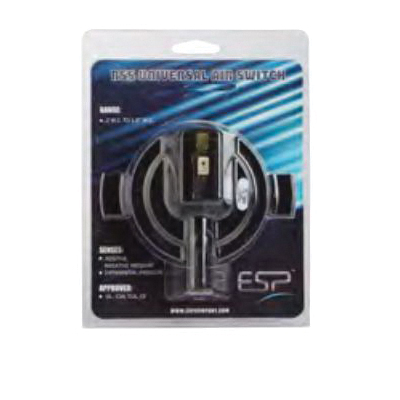

ESP RSS Air Pressure Sensing Switch Kit, 1 to 4 in WC Differential

  • Manufacturers: ESP
  • Brand Name: ESP
  • Part#: 308321
  • MPN: RSS-498-13
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading branchavailability

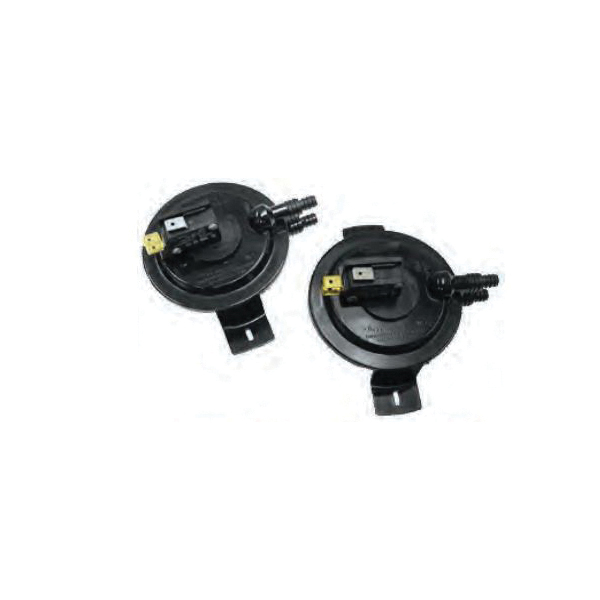

Series RSS-498-13 Air Sensing Switch Kit contains compact, economical switches designed for residential furnace and light commercial aftermarket applications. The RSS-498 switches have an adjustable set point range of 1.0 in W.C. to 4.0 in W.C. (They have been factory set to activate on a pressure rise of 1.0 in W.C.) The field adjustability makes these switches ideal for aftermarket residential furnace applications, electronic air cleaners and humidifiers.

ESP Air Pressure Sensing Switch Kit, Series: RSS, 1 to 4 in WC Differential, -40 to 180 deg F, 4.62 in Width, 2.13 in Depth, 4 in Height

Depth      :      2.13 in
Differential Pressure      :      1 to 4 in WC
Height      :      4 in
Series      :      RSS
Temperature Rating      :      -40 to 180 deg F
Width      :      4.62 in
  • 1 + 0.05 to 4 + 0.05 in W.C range
