Fieldpiece HS36

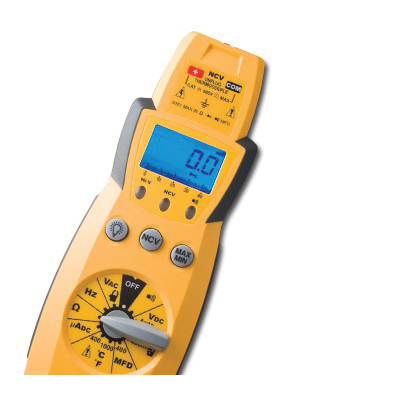

Fieldpiece HS36 Expandable True RMS Multimeter With Backlight, 600 VAC/VDC, 400 A, 40 mOhm, LCD

  • Manufacturers: Fieldpiece Instruments
  • Brand Name: Fieldpiece
  • Part#: 246614
  • MPN: HS36
  • UPC: 872641000325
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading branchavailability

Our top of the line Stick Meter, the HS36 includes the ranges you use everyday for HVACR field service plus includes a bright blue backlight and True RMS. Like the rest of the HS30 series, the HS36 comes equipped with a magnetic hanger, along with detachable silicone test leads and alligator clip probe tips for remote and easy one-handed testing, as well as the full set of built-in safety features. This auto-ranging stick meter also includes a bar graph on the LCD for an analog feel. Technicians who prefer our expandable stick meters tell us this is the best digital multimeter for HVACR field service. The HS meter series is unlike any other found in HVACR. We incorporate a number of safety features, both those you can and can't see, into our meters. In addition, the HS series accepts modular test instrument accessory heads, so you have more testing capabilities without buying a lot of expensive instruments.

Fieldpiece RMS Multimeter, Expandable True, 600 VAC/VDC, 400 A, 40 mOhm, Safety Rating: 600 V, 400 uF, LCD Display, Alkaline Battery Type, 11.8 in L x 6.5 in W x 3 in H, -30 to 1000 deg F, Yellow

Amperage Rating      :      400 A
Battery Type      :      Alkaline
Capacitance      :      400 uF
Color      :      Yellow
Dimensions      :      11.8 in L x 6.5 in W x 3 in H
Display      :      LCD
Includes      :      HS36 Expandable Auto Ranging Stick Multimeter, ACH4 400A Amp Clamp Accessory, ADLS2 Deluxe Silicone Test Leads, ASA2 Short Alligator Lead Extensions, ANC1 Deluxe meter Case, 9 V Battery (installed), Operator's Manual
Resistance      :      40 mOhm
Safety Rating      :      600 V
Temperature Rating      :      -30 to 1000 deg F
Type      :      Expandable True
Voltage Rating      :      600 VAC/VDC
Warranty      :      1 Year
  • Works with accessory heads
  • Non-contact voltage alert
  • uA DC for flame diodes
  • 400 AAC with included clamp
  • Temperature up to 1000 deg F
  • High voltage and continuity indicators
  • Rugged ABS case with rubberized bumpers
  • Built-in magnetic hanger allows you to test with one hand or no-hands
  • Built-in lead storage
  • Ergonomic shape fits naturally in your hand
  • Auto power-off (APO) to conserve battery life
  • Silicone leads with detachable probe tips
  • Cat III 600 V
