Fieldpiece LT17A
  1. pin-int

Fieldpiece LT17A

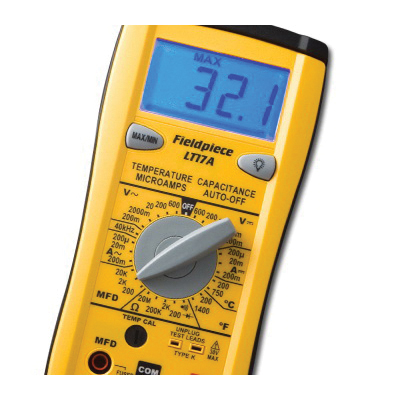

Fieldpiece LT17A Classic Digital Multimeter, 600 VAC/VDC, 400 A, 40 mOhm, LCD

  • Manufacturers: Fieldpiece Instruments
  • Brand Name: Fieldpiece
  • Part#: 246615
  • MPN: LT17A
  • UPC: 872641000356
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading branchavailability

This manual ranger covers the parameters and ranges you need for most HVACR applications. The LT17A meter measures current, resistance, voltage, capacitance, frequency, continuity, and temperature. Test leads store in the meter body and, with the probe tips removed, connect to any Fieldpiece accessory head. The body is made out of durable ABS plastic and comes with a bright blue backlight for poorly lit test areas. Get great accuracy using the included k-type thermocouple and an easily accessible temperature calibration pot. The testing capabilities packed into this classic style meter is its main competitive advantage. In addition to all of the ranges, it has direct temperature measurement and works with all of our accessory heads to make it one of the most complete classic style meters available for HVACR professionals.

Fieldpiece Digital Multimeter, Classic, 600 VAC/VDC, 400 A, 40 mOhm, Safety Rating: 600 V, 200K uF, LCD Display, NEDA 1604 Battery Type, 9.5 in L x 7 in W x 3.4 in H, -30 to 1000 deg F, Yellow

Amperage Rating      :      400 A
Battery Type      :      NEDA 1604
Capacitance      :      200K uF
Color      :      Yellow
Dimensions      :      9.5 in L x 7 in W x 3.4 in H
Display      :      LCD
Includes      :      LT17A Classic Style Clamp Meter with Temperature, ADLS2 Deluxe Silicone Test Leads, ACH4 400A Amp Clamp Accessory, ATB1 Wrap Tab Bead Tip Thermocouple, ASA2 Short Alligator Lead Extensions, ANC5 Mail Pouch-Style Instrument Case, 9 V Battery (installed), Operator's Manual
Resistance      :      40 mOhm
Safety Rating      :      600 V
Temperature Rating      :      -30 to 1000 deg F
Type      :      Classic
Voltage Rating      :      600 VAC/VDC
Warranty      :      1 Year
  • Temperature up to 1400 deg F
  • 400 AAC with included clamp
  • Capacitance up to 200 MFD
  • Works with accessory heads
  • Microamps for flame diode test
  • Frequency for motor setup
  • Works with Fieldpiece accessory heads
  • Record the minimum or maximum reading during a measurement, to exit the MIN/MAX function, hold the button for more than 2 seconds
  • Tilt stand and magnetic hanger
  • Bright Blue Backlight
  • Rugged ABS case with rubber boot
  • Even though it's a classic style meter it still fits naturally in your hand
  • Auto power-off (APO) to conserve battery life
  • Cat III 600 V
  • pdfBrochure https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Fieldpiece_LT17A_Brochure.pdf
