ICM™ ICM283

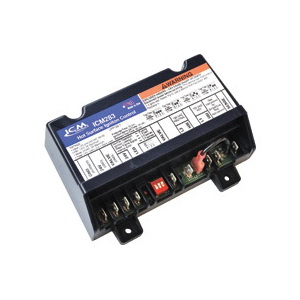

ICM™ ICM283 Gas Ignition Control, 24/120 VAC, Domestic

  • Manufacturers: ICM Controls
  • Brand Name: ICM™
  • Part#: 154462
  • MPN: ICM283
  • UPC: 800442002828
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading branchavailability

ICM™ Gas Ignition Control, 24/120 VAC, 5-3/8 in Height, 4 in Width, 1-5/8 in Depth, Domestic

Depth      :      1-5/8 in
Domestic/Import      :      Domestic
Height      :      5-3/8 in
Voltage Rating      :      24/120 VAC
Warranty      :      1 Year
Width      :      4 in
  • HSI Gas Ignition Control - replacement for popular models, including Honeywell S8910U-1000
  • Low cost replacement HSI control for Honeywell, Robertshaw and White Rodgers
  • Single/dual rod sensing capabilities
  • For gas fired furnaces, boilers and other heating appliances
  • Switch selectable lockout times, ignition trials
  • Works with both natural and LP gas systems
  • Diagnostic LED to aid in troubleshooting
  • Pre-purge time: 32 sec, trial time: 4 or 7 sec (switch selectable), ignition trials to lockout: 1 or 3 (switch selectable)
  • Flame sense: Single rod or dual rod
  • HSI: 120 V, 5A max
  • Valve: 24 V, 2A max
  • Total: 24 V Load = 0.4 + valve load
