Mars® 32001

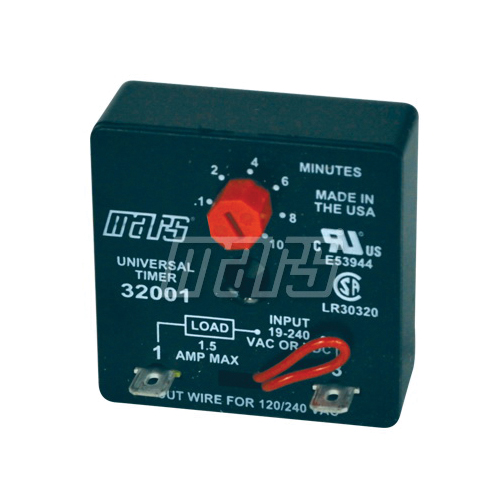

Mars® 32001 Anti Short Cycle Delay on Break Timer, 1.5 A

  • Manufacturers: Mars
  • Brand Name: Mars®
  • Part#: 266710
  • MPN: 32001
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

The MARS Delay on Make Timer is designed to delay energization and prevent short cycling. This one unit covers all operating voltages and time delays. The compact timer mounts in any position and features easy two wire installation. UL recognized. The MARS Delay on Break Timer, dial adjustable is designed to prevent short cycling of air conditioning and heat pump compressors. The compact timers mount in any position and are UL recognized.

Mars® Delay on Break Timer, Anti Short Cycle, 18 to 240 VAC, 1.5 A, 50/60 Hz, Quick Connect Terminal

Amperage Rating      :      1.5 A
Frequency Rating      :      50/60 Hz
Terminal Type      :      Quick Connect
Type      :      Anti Short Cycle
Voltage Rating      :      18 to 240 VAC
  • 6 sec to 10 min time delay
  • Dial and 2 terminal adjustment
  • Delay on break (anti-short cycle) timer
  • Time delay range: 0.03 to 10 min
  • Knob adjustment
