SharkBite's Female Elbows are FNPT on one end, and push-to-connect on the opposite end. These fittings allow the user to make a 90-degree connection to copper, PEX, CPVC or PE-RT pipes. This fitting is designed for potable water and radiant heating (including underground or behind-the-wall) applications with no access panels required. It is rated up to 200 deg F and 200 psi.

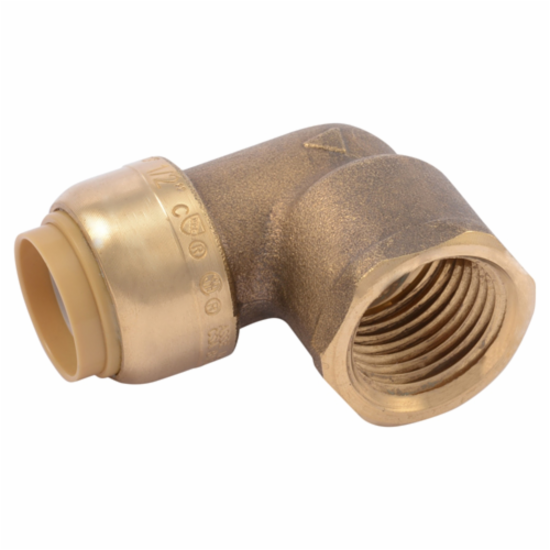

Sharkbite® Female Elbow, Series: U308LF, Fitting/Connector Type: Elbow, 1/2 in Nominal Size, Push-Fit x FNPT, 90 deg, 200 psi, Brass, Natural Brass/Chrome Plated, 200 deg F
Angle |
: |
90 deg |
End Style |
: |
Push-Fit x FNPT |
Finish |
: |
Natural Brass/Chrome Plated |
Fitting/Connector Type |
: |
Elbow |
Material |
: |
Brass |
Nominal Size |
: |
1/2 in |
Pressure Rating |
: |
200 psi |
Series |
: |
U308LF |
Temperature Rating |
: |
200 deg F |
Warranty |
: |
25 Years Limited |
- Instant push-fit connection for increased ease-of-use: no soldering, clamps, unions, or glue required
- Fittings certified to 200 psi and 200 deg f (93 deg c): proven durability and quality
- Fits copper tubing, and CTS CPVC and PEX: connects all three types in any combination
- Integral pipe liner for pex installations: Integrated design means no loose components, ensures secure, reliable connection
- Design certified and agency listed: Inspector friendly, peace of mind!
- Compact, robust lead free DZR brass body: Foundation of a strong, corrosion resistant, durable fitting
- Design certified to NSF/ANSI 61, NSF/ANSI 14 and ASSE 1061 product standard for used in potable water and hydronic heating water distribution: quality engineered and manufactured
- Approved to be used underground and behind walls without access panels
- Designed for hydronic heating as well as potable water distribution
- EPDM o-ring
- Stainless steel grab ring
- Polysulfone tube support liner
- Potable water service
- For use with copper, CPVC and pex pipe
- 0.938 in insertion D
-
