Bell & Gossett 110190LF
  1. pin-int

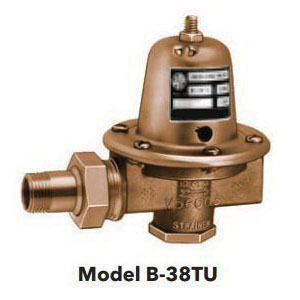

Bell & Gossett 110190LF

1/2" NPT, Lead-Free Pressure Reducing Valve, 125 psig, 5-1/2gpm to 6 gpm, Brass

  • Manufacturers: Xylem
  • Brand Name: Bell & Gossett
  • Part#: 106274
  • MPN: 110190LF
  • UPC: 076335562544
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading branchavailability

Bell & Gossett Pressure Reducing Valve, Lead-Free, Series: B-38, 1/2 in Nominal Size, NPT, 125 psig, 225 deg F, 5-1/2 to 6 gpm, Brass Body, Brass Stem Trim, EPDM Seat, 4-3/16 in H x 3-1/16 in W

Body Material      :      Brass
Dimensions      :      4-3/16 in H x 3-1/16 in W
End Style      :      NPT
Flow Rate      :      5-1/2 to 6 gpm
Nominal Size      :      1/2 in
Pressure Rating      :      125 psig
Series      :      B-38
Softgoods Material      :      EPDM Seat
Temperature Rating      :      225 deg F
Trim Material      :      Brass Stem
Type      :      Lead-Free
  • pdfAdditional Information https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Bell_Gossett_110190LF_Additional_Information.pdf
