Mars® 10553
  1. pin-int

Mars® 10553

Mars 10553 Goodman 80% 0131M00002P Draft Inducer

  • Manufacturers: Mars
  • Brand Name: Mars®
  • Part#: 287669
  • MPN: 10553
  • UPC: 685744105534
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading branchavailability

MARS draft inducer blower assemblies are designed and manufactured to serve as drop-in, exact replacements.

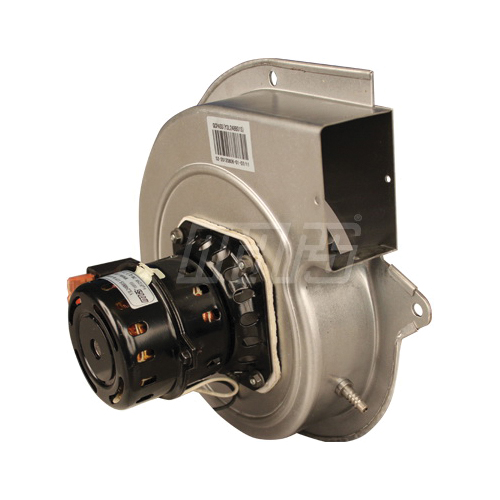

Goodman® By Mars® Draft Inducer Blower, PSC Motor, 115 VAC, 0.4 A Full Load, 1/50 hp, 1 Speed, 3000 rpm, CW, C, Ball Bearing, Open

Amperage Rating      :      0.4 A Full Load
Bearing Type      :      Ball
Enclosure Type      :      Open
Frame Type      :      C
Includes      :      Capacitor
Motor Type      :      PSC
Number of Speeds      :      1
Power Rating      :      1/50 hp
Rotation Type      :      CW
Speed      :      3000 rpm
Voltage Rating      :      115 vac
  • 0.3 in Dia x 3.85 in L shaft
  • 1 ph
  • 2.6 in NEMA frame size
  • 60 Hz frequency
  • Class F insulation
  • BR-A1D150 deg C thermal protection
  • 60 deg C ambient temperature
  • 2/250 VAC capacitor rating (included)
  • pdfCatalog https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Mars_10552_Catalog.pdf
