Mars® 32702
  1. pin-int

Mars® 32702

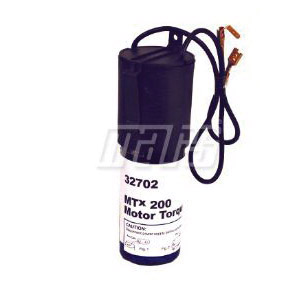

Mars® MTX 200 Motor Torque Multiplier, 115 to 230 VAC

  • Manufacturers: Mars
  • Brand Name: Mars®
  • Part#: 251045
  • MPN: 32702
  • UPC: 685744327028
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

The Mars® MTX 100, MTX 200 and MTX 300 motor torque multipliers feature a combination PTC solid state device, and start capacitor in one compact unit. The MTX 100 is designed for use on PSC motors and compressors up to 5HP, 277V maximum; the MTX 200 is designed for use on PSC motors and compressors up to 10HP, 277V maximum; and the Mars® MTX 300 is designed for use on PSC motors & compressors from 1-1/2 up to 10HP, 115-230V. These units are easily installed by connecting the two leads from the MTX unit to the motor run capacitor terminals.

Mars® Motor Torque Multiplier, Series: MTX 200, 115 to 230 VAC, 1/2 to 10 hp Motor

Includes      :      Capacitor and Relay
Series      :      MTX 200
Specifications      :      1/2 to 10 hp Motor
Voltage Rating      :      115 to 230 VAC
  • Totally solid state integrated design
  • Fast, easy two wire installation
  • Individually packaged
  • 200 to 500% oz-in increased torque
  • Replacement parts Gemline® HS650, Robertshaw® 600-057, Supco® SPP6
  • pdfCatalog-1 https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Mars_32702_Catalog.pdf
