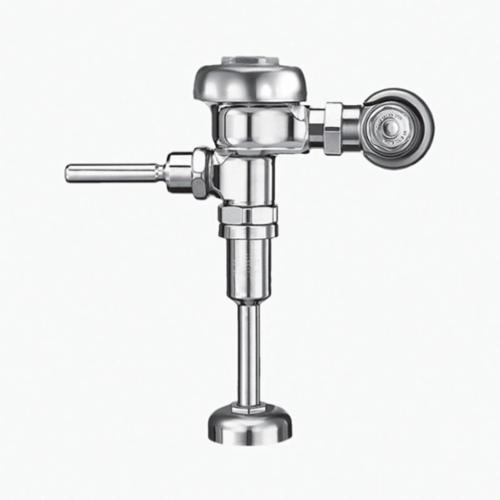

Sloan® Regal® Manual Exposed Flushometer, Single Flush, Series: REGAL 186, Urinal Fixture, 1 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, Diaphragm, Connection Location: Top Spud, Non-Hold-Open Oscillating Handle, Semi-Red Brass, Polished Chrome Finish/Color, Domestic
| Connection Location | : | Top Spud |
| Domestic/Import | : | Domestic |
| Finish/Color | : | Polished Chrome |
| Fixture Type | : | Urinal |
| Flush Rate | : | 1 gpf |
| Handle Style | : | Non-Hold Open Oscillating |
| Inlet Size | : | 3/4 in IPS |
| Material | : | Semi-Red Brass |
| Series | : | REGAL 186 |
| Spud Coupling | : | 3/4 in |
| Type | : | Single Flush |
| Valve Design | : | Diaphragm |
- ADA compliant metal oscillating non-hold-open handle
- 1 in IPS screwdriver Bak-Chek® angle stop
- Control stop plug
- Sweat solder adapter with cover tube
- Cast wall flange with set screw
- Vacuum breaker flush connection
- Spud coupling and spud flange for 1-1/2 in back spud
- Non-hold-open handle and no external volume adjustment to ensure water conservation
- Low consumption flush accuracy controlled by Para-Flo™ technology
- Diaphragm, handle packing and vacuum breaker to be molded from PERMEX® rubber compound for chloramine resistance
- Valve body, cover and tailpiece shall be in conformance with ASTM Alloy classification for semi-red brass
- Adjustable tailpiece
- REGAL 186-1 XL
Data/Spec Sheet-1
