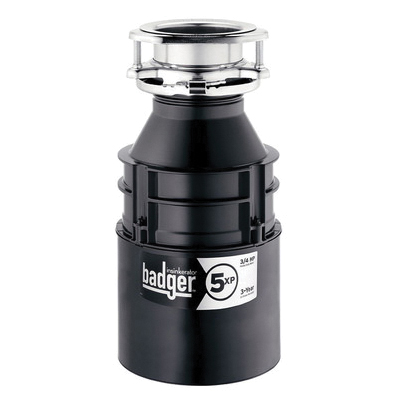

Our Badger 5XP garbage disposal offers a heavy duty motor and space-saving compact design. The InSinkErator Badger® Series garbage disposals are a reliable and functional choice when affordability is the prime concern. Choose from three Badger Series garbage disposal models, each with a space-saving compact design.
InSinkErator® Garbage Disposal, Continuous Feed, Series: Badger® 5XP, 1-1/2 in Drain, 3/4 hp Horse Power, 120 V, 9.5 A, 60 Hz, 1725 rpm Grinding Speed, 26 oz Grinding Chamber, Galvanized Steel, Waterborne Grey Enamel, 12-5/8 in H, Domestic
| Amperage Rating | : | 9.5 A |
| Dimensions | : | 12-5/8 in H |
| Domestic/Import | : | Domestic |
| Drain Connection | : | 1-1/2 in |
| Finish | : | Waterborne Grey Enamel |
| Frequency Rating | : | 60 Hz |
| Grinding Chamber Capacity | : | 26 oz |
| Grinding Speed | : | 1725 rpm |
| Horse Power | : | 3/4 hp |
| Material | : | Galvanized Steel |
| Series | : | Badger® 5XP |
| Type | : | Continuous Feed |
| Voltage Rating | : | 120 V |
| Warranty | : | 3 Years Parts and In-Home Service |
- 3/4 hp Dura-Drive® induction motor, single phase

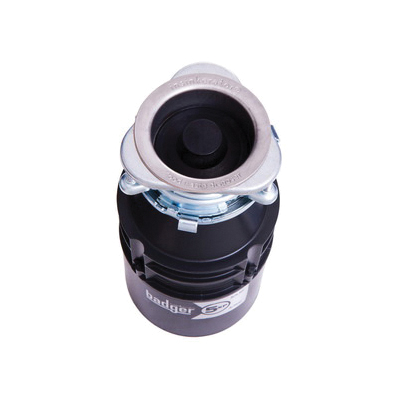

- Quick Lock® sink mount allows for easy installation and garbage disposal replacement
- On/Off control - Wall switch
- Intermittent time rating
- Permanently lubricated upper and lower bearings
- Manual reset overload motor protection
- 1 gal per person/day average water usage
- 3 to 4 kWh per year average electrical usage
- Anti-vibration drain connection (hose clamp)
