American Standard 6561.017.020

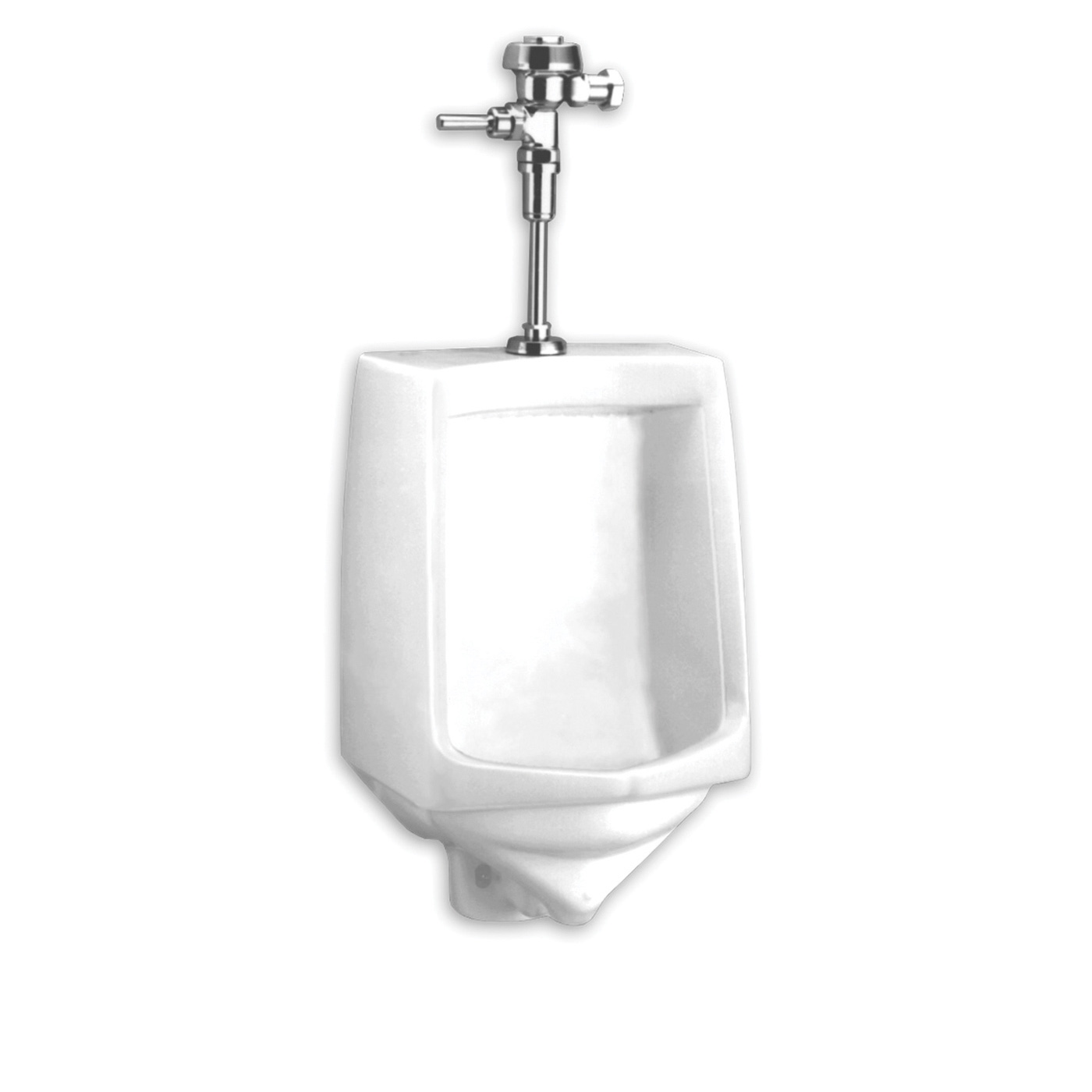

American Standard 6561.017.020 Trimbrook® Siphon-Jet Urinal, 1 gpf, Top, Wall Mounting, White
This low-consumption urinal uses just 1.0 gallon per flush. Features include a flushing rim and siphon-jet flush action for effectiveness, and extended sides for privacy. Its versatile design could work well in traditional and casual commercial environments.
American Standard Urinal, Siphon-Jet, Collection: Trimbrook®, 1 gpf Flush, Top Spud Location, 3/4 in Inlet Spud, 2 in NPTF Outlet Tap, 20 to 80 psi Working, Wall Mount, Vitreous China, White, 26-3/4 in H x 17-1/2 in W x 14 in D
| Collection | : | Trimbrook® |
| Dimensions | : | 26-3/4 in H x 17-1/2 in W x 14 in D |
| Finish/Color | : | White |
| Flush Rate | : | 1 gpf |
| Inlet Spud Size | : | 3/4 in |
| Material | : | Vitreous China |
| Mounting Type | : | Wall |
| Outlet Tap Size | : | 2 in NPTF |
| Spud Location | : | Top |
| Type | : | Siphon-Jet |
| Working Pressure | : | 20 to 80 psi |
- Low consumption (3.8 Lpf/1.0 gpf)
- Flushing rim
- Siphon jet flush action
- Extended sides for privacy
- 3/4 in inlet spud
- Outlet connection threaded 2 in inside (NPTF)
- 2 wall hangers
- Fixture only
- Meets ANSI flush requirements at 1.0 gpf
Data/Spec Sheet-1
