Honeywell VR8300A3500/U
  1. pin-int

Honeywell VR8300A3500/U

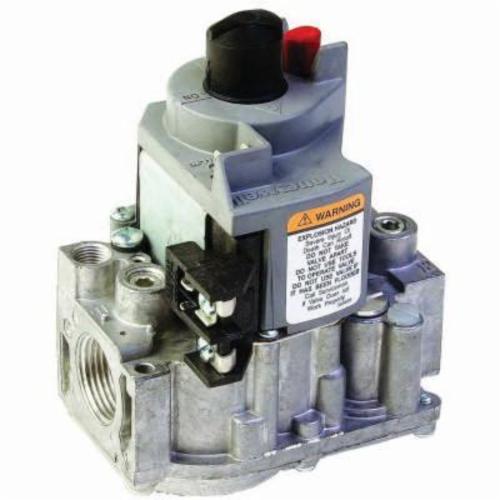

Honeywell VR8300 1-Stage Gas Valve, 1/2 x 3/4 in, NPT, 0.5 psi, Standing Pilot Ignition, 30000 to 290000 Btu/hr, Import

  • Manufacturers: Honeywell
  • Brand Name: Honeywell
  • Part#: 152765
  • MPN: VR8300A3500/U
  • UPC: 085267113748
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading branchavailability

Combination gas control for use in 24 VAC gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.

Honeywell Gas Valve, 1-Stage, Series: VR8300, 1/2 x 3/4 in Nominal Size, NPT, 0.5 psi, Standing Pilot Ignition, 30000 to 290000 Btu/hr Nominal Capacity, Natural Gas, 24 VAC 60 Hz Coil, 1/4 in Male Quick Connect Terminal, 0 to 175 deg F, 5-3/8 in H x 4-1/16 in W x 2-11/16 in D, Import

Coil Voltage      :      24 VAC 60 Hz
Dimensions      :      5-3/8 in H x 4-1/16 in W x 2-11/16 in D
Domestic/Import      :      Import
Electrical Connection      :      1/4 in Male Quick Connect Terminal
End Style      :      NPT
Gas Type      :      Natural Gas
Ignition Type      :      Standing Pilot
Includes      :      Natural to LP Conversion Kit and (1) 34/ x 1/2 in Reducer Bushing
Nominal Capacity      :      30000 to 290000 Btu/hr
Nominal Size      :      1/2 x 3/4 in
Pressure Rating      :      0.5 psi
Series      :      VR8300
Temperature Rating      :      0 to 175 deg F
Type      :      1-Stage
Warranty      :      Limited
  • Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment
  • Compact design
  • Provides two automatic valves
  • Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
  • Diaphragm operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted
  • Meets codes requiring dual safety shutoff
  • Natural to LP and LP to natural conversion kits available for standard and slow opening gas valves
  • All adjustments, wiring connections and pilot outlet are accessible from top of control
  • Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
  • Compatible with ECO connector
  • LITE-RITE (Off-Pilot-On) lighting sequence
  • Straight-through body pattern
  • 0 to 90 deg in any direction from the upright position of the gas control knob mounting
  • 3-1/2 in WC pressure regulator setting
  • Standard opening gas vavle
