Mars® 43307

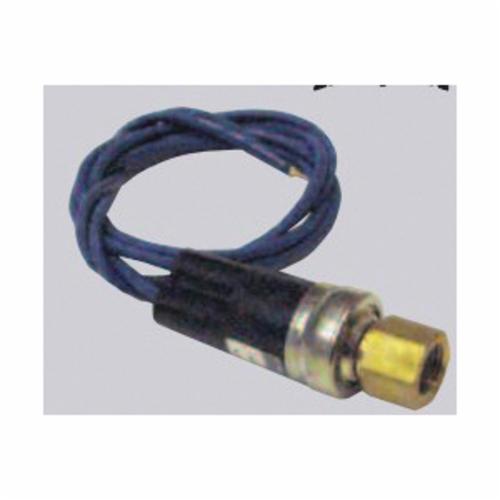

Mars® 43307 Auto Reset Condenser Fan Cycling Switch, SPST Close on Rise, Import

  • Manufacturers: Mars
  • Brand Name: Mars®
  • Part#: 250368
  • MPN: 43307
  • UPC: 685744433071
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading branchavailability

Mars® Condenser Fan Cycling Switch, Auto Reset, SPST Switch, Close on Rise, 400 psi Close, 300 psi Open Pressure, 1/4 in Female Flare Connection, Direct Mount, Import

Close Pressure Rating      :      400 psi
Connection Type      :      1/4 in Female Flare
Domestic/Import      :      Import
Mounting Type      :      Direct
Open Pressure Rating      :      300 psi
Switch Action      :      Close on Rise
Switch Type      :      SPST
Type      :      Auto Reset
  • Tamper proof construction
  • Direct mounting on tubing
  • Contacts rated at 6A, 24 to 240V
  • 18 in lead
  • +/-10 psi ranges
  • Lead length 18 in blue XLP wires, 1/2 in stripped end
  • pdfCatalog https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Mars_33350_Catalog.pdf
